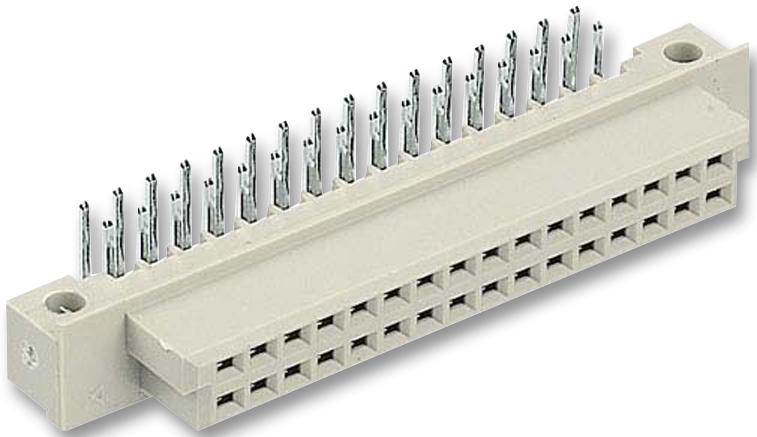

HARTING - 09272326801 - DIN 41612 Connector, Type 2Q, 32 Contacts, Receptacle, 2.54 mm, 2 Row, a + b
- Product Range: Type 2Q Series
- No. of Contacts: 32Contacts
- Gender: Receptacle
- Pitch Spacing: 2.54mm
- No. of Rows: 2 Row
- Rows Loaded: a + b
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper
- No. of Mating Cycles: 400
- SVHC: No SVHC (15-Jan-2018)
- Contact Termination: Through Hole Right Angle
- Contact Termination Type: Through Hole
- Current Rating: 2A
- Flammability Rating: UL94V-0
- Lead Spacing: 2.54mm
- Mating Force: 30N
- No. of Rows: 2Rows
- Operating Temperature Max: +125°C
- Operating Temperature Min: -55°C
- Pin Length: 3mm
- Standard: VG95324/DIN53480/IEC112
- Termination Method: Solder
- Working Voltage: 250V
