IM03NS Relay, Signal, DPDT, 250VAC, 220VDC, 2A AXICOM - Te Connectivity

AXICOM - TE CONNECTIVITYSKU:IM03NS Bestelcode:1770584

Prijs:
Actie prijs€5,82

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2394 units)

Documenten en downloads

Omschrijving

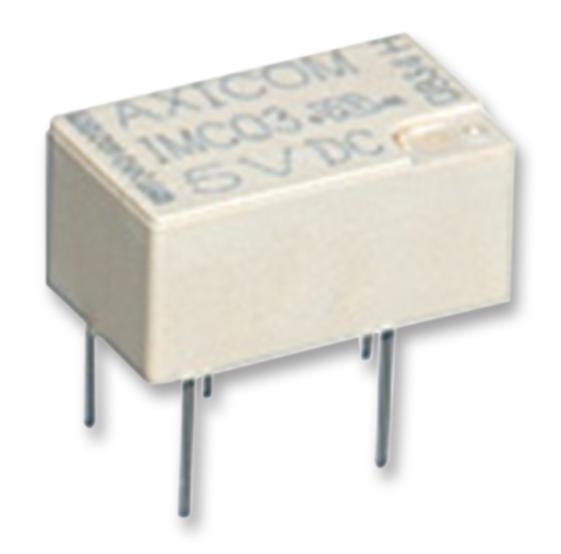

AXICOM - TE CONNECTIVITY - 1-1462038-3 - Signal Relay, 5 VDC, DPDT, 2 A, IM, Through Hole, Non Latching

  • Coil Voltage: 5VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: IM Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 220V
  • Contact Material: Palladium Ruthenium
  • Coil Resistance: 178ohm
  • Coil Power Continuous: 140mW
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 2A
  • Contact Current DC Max: 5A
  • Contact Current Max: 2A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 220V
  • Contact Voltage DC Nom: 220V
  • External Depth: 10mm
  • External Height: 5.65mm
  • External Length / Height: 5.65mm
  • External Width: 6mm
  • Operating Temperature Max: 85°C
  • Operating Voltage Range: 3.75V to 12.1V
  • Relay Type: Signal
  • Type: Non-Latching
