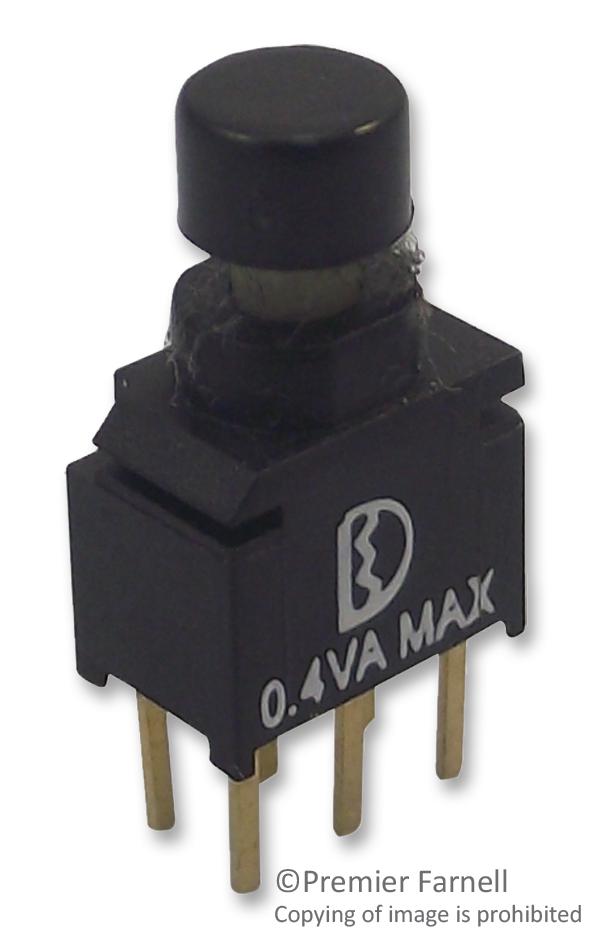

P8UD8WR2C2M2RES Switch, Push Button, DPDT, On-Mom multicomp Pro

MULTICOMP PROSKU:P8UD8WR2C2M2RES Bestelcode:1550266

Prijs:
Actie prijs€3,76

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (50 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - P8UD8WR2C2M2RES - Pushbutton Switch, DPDT, On-(On), Round, Black

  • Switch Operation: On-(On)
  • Contact Configuration: DPDT
  • Contact Voltage AC Nom: 20V
  • Contact Voltage DC Nom: 20V
  • Contact Current Max: 100mA
  • Switch Terminals: PC Pin
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • AC Power: 0.4VA
  • Actuation Type: Round
  • Actuator / Cap Colour: Black
  • Bush Length: 1.6mm
  • Colour: Black Cap
  • Contact Resistance: 50mohm
  • Contact Voltage VAC: 20V
  • Contact Voltage VDC: 20V
  • DC Power: 0.4VA
  • External Depth: 4.5mm
  • External Length / Height: 5.8mm
  • External Width: 7mm
  • Flammability Rating: UL 94V-0
  • IP / NEMA Rating: IP67
  • Illumination Colour: Non-illuminated
  • Insulation Resistance: 500Mohm
  • Material: Glass Filled Nylon
  • No. of Mechanical Operations: 40000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Pushbutton Actuator Style: Round
  • Pushbutton Switch Type: Standard
  • Switch Mounting: Through Hole
  • Termination Method: Through Hole
