Omschrijving

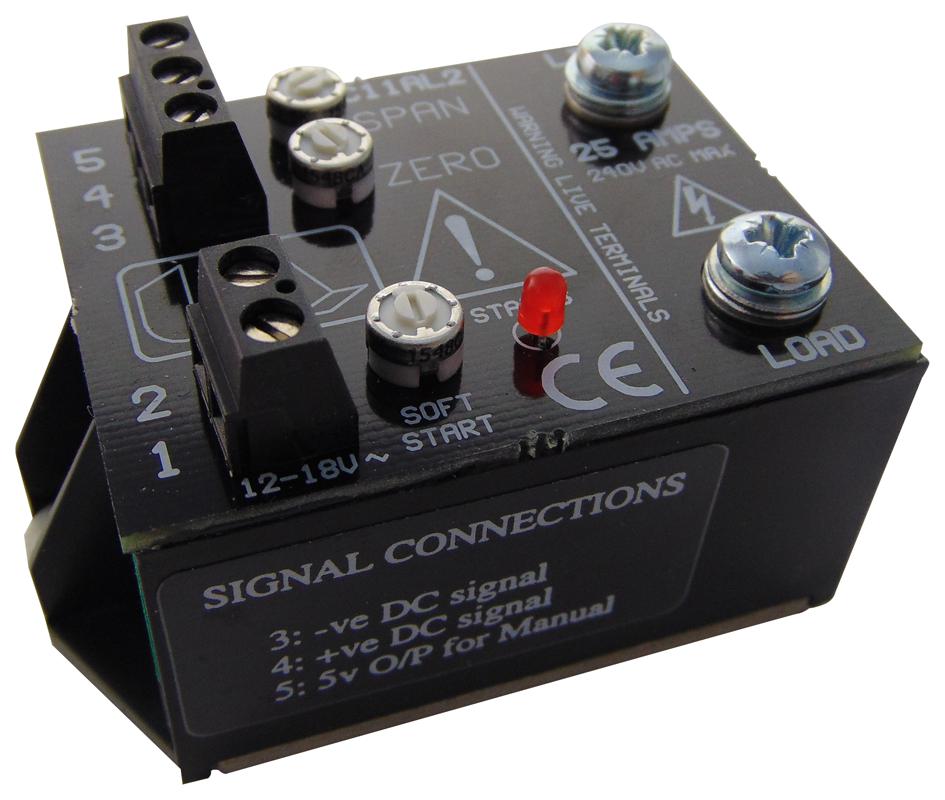

UNITED AUTOMATION - TPSR-25 - Power Controller, CE Approved, 60 Hz, 25 A, 207 V to 253 V
- On State Current Max: 25A
- Supply Voltage Min: 207VAC
- Supply Voltage Max: 253VAC
- Isolation Voltage: 1.5kV
- Supply Frequency: 60Hz
- Operating Temperature Min: 0°C
- Operating Temperature Max: 65°C
- Product Range: -
- SVHC: No SVHC (20-Jun-2016)
- Approval Bodies: CE
- External Depth: 56mm
- External Length / Height: 28mm
- External Width: 43mm
- For Use With: Quartz Lamps, Conventional Resistive Heating Elements, Inductive Loads
- Hysteresis: 15%
- IC Generic Number: *PSR-25
- Leakage Current: 5mA
- Load Power: 6kW
- Off State Voltage: 400V
- Operating Temperature Range: 0°C to +65°C
- RMS Current (Irms): 25A
- Supply Voltage: 240V
- Supply Voltage Range: 207V AC to 253V AC
- Voltage Vf Typ: 1.5V
