Description

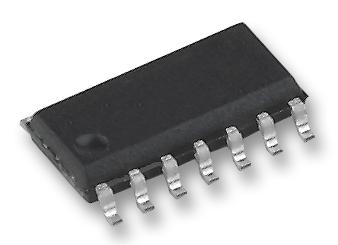

NEXPERIA - HEF4070BT,653 - Logic IC, XOR (Exclusive OR), Quad, 2 Inputs, 14 Pins, SOIC, 4070
- Logic Family / Base Number: HEF4070
- Logic Type: XOR
- Output Current: 2.4mA
- No. of Inputs: 2
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 15.5V
- Logic Case Style: SOIC
- No. of Pins: 14Pins
- Logic IC Family: HEF4000
- Logic IC Base Number: 4070
- Operating Temperature Min: -40°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 4070
- Logic Function Number: 4070
- Logic IC Base Number: 4070
- Logic IC Function: Quadruple 2-Input Exclusive-OR Gate
- No. of Gates: 4
- Operating Temperature Range: -40°C to +70°C
- Supply Voltage: 15V
- Supply Voltage Range: 4.5V to 15.5V
- Termination Type: Surface Mount Device
