Description

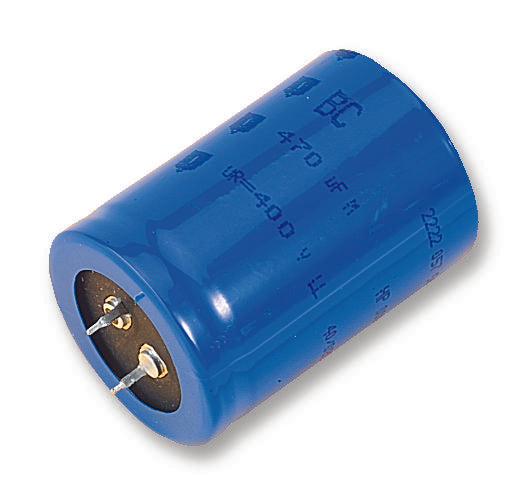

VISHAY - MAL205758471E3 - Electrolytic Capacitor, Long Life, 470 µF, 385 V, ± 20%, Quick Connect, Snap-In, 12000 hours @ 85°C
- Capacitance: 470µF
- Voltage Rating: 385V
- Product Range: 057 PSM Series
- Lifetime @ Temperature: 12000 hours @ 85°C
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Quick Connect, Snap-In
- Diameter: 35mm
- Lead Spacing: 10mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Height: 50mm
- ESR: 0.34ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 2.76A
- Capacitance Tolerance ±: ± 20%
- Capacitor Mounting: Through Hole
- Climatic Category: 40/085/56
- ESR Frequency: 100Hz
- ESR Temperature: 20°C
- External Length / Height: 50mm
- Frequency Tolerance: 100Hz
- Leakage Current: 366µA
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 12000h
- PCB Hole Diameter: 2mm
- Ripple Current AC: 2.76A
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 85°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 385V
- Voltage Rating V DC: 385V
