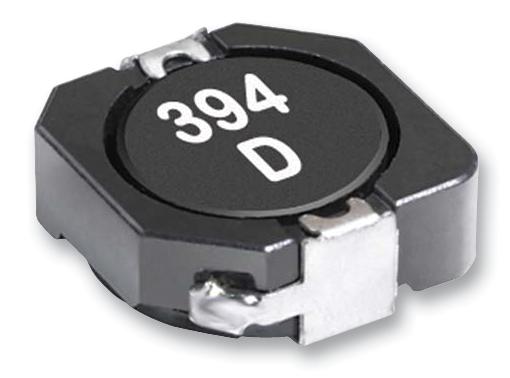

COILCRAFT - MSS1038-183MLC - Power Inductor (SMD), 18 µH, 3.35 A, Shielded, 2.44 A, MSS1038
- Inductance: 18µH
- RMS Current (Irms): 3.35A
- Inductor Construction: Shielded
- Saturation Current (Isat): 2.44A
- Product Range: MSS1038 Series
- Power Inductor Case: 10.2mm x 10mm x 3.8mm
- DC Resistance Max: 0.065ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 18MHz
