Description

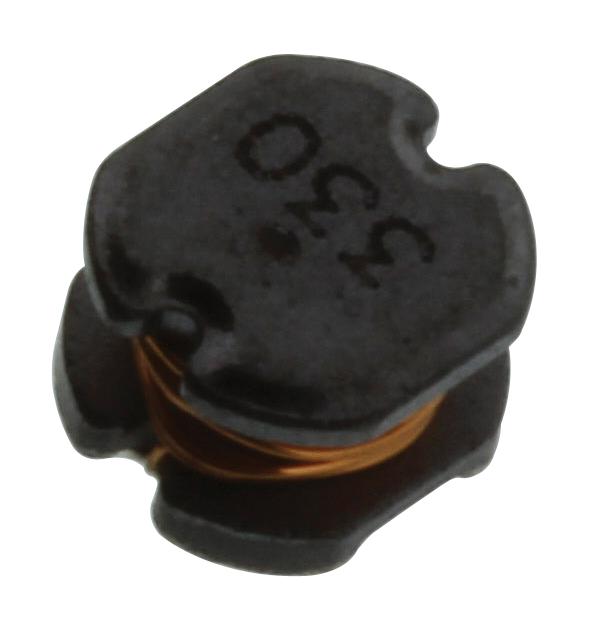

BOURNS - SDR0403-330KL - Power Inductor (SMD), 33 µH, 640 mA, Unshielded, 990 mA, SDR0403
- Inductance: 33µH
- RMS Current (Irms): 640mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 990mA
- Product Range: SDR0403 Series
- Power Inductor Case: 4.5mm x 4mm x 3.2mm
- DC Resistance Max: 0.54ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 4mm
- External Length / Height: 3.2mm
- External Width: 4.5mm
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 23
- Q Test Frequency: 2.52MHz
- Resonant Frequency: 15MHz
- Self Resonant Frequency Min: 15MHz
- Test Frequency: 2.52MHz
