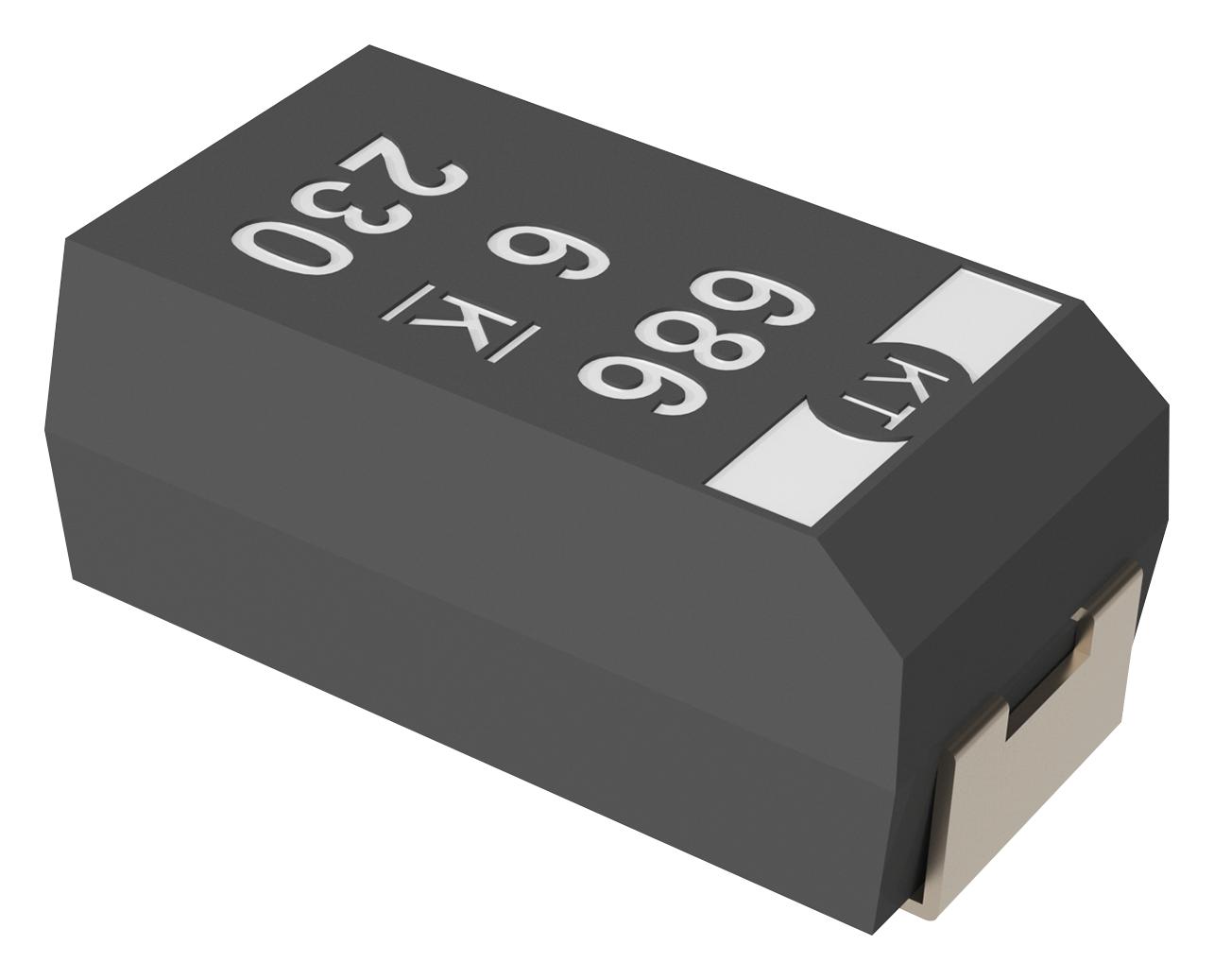

T530X687M004ATE006 Cap, 680µF, 4V, 20%, 2917, SMD Kemet

KEMET - T530X687M004ATE006 - Tantalum Polymer Capacitor, KO-CAP®, 680 µF, ± 20%, 4 V, X, 0.006 ohm, 2917 [7343 Metric]

• Capacitance: 680µF
• Voltage Rating: 4V
• Product Range: T530 KO-CAP&reg
• Capacitance Tolerance: ± 20%
• Manufacturer Size Code: X
• ESR: 0.006ohm
• Operating Temperature Min: -55°C
• Operating Temperature Max: 125°C
• Automotive Qualification Standard: -
• SVHC: No SVHC (15-Jan-2018)
• Capacitance Tolerance ±: ± 20%
• Capacitor Case Style: 2917 [7343 Metric]
• Capacitor Mounting: SMD
• Capacitor Terminals: SMD
• External Depth: 4.3mm
• External Length / Height: 4mm
• External Width: 7.3mm
• No. of Pins: 2Pins
• Operating Temperature Range: -55°C to +125°C
• Tantalum Capacitor Case: 2917 [7343 Metric]
• Tolerance -: 20%
• Voltage Rating V DC: 4V
