Description

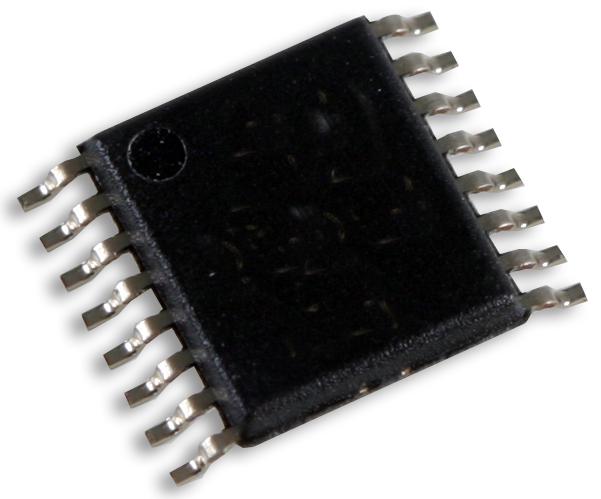

DIODES INC. - ZXLD1370EST16TC - Led Driver, 1 Output, Buck, Boost, Buck-Boost, 6.3V-60V in, 1MHz switch,300mA out, TSSOP-16
- Device Topology: Buck, Boost, Buck-Boost
- Input Voltage Min: 6.3V
- Input Voltage Max: 60V
- Output Voltage Max: -
- Output Current Max: 300mA
- Switching Frequency: 1MHz
- No. of Outputs: 1Outputs
- IC Mounting: SMD
- Driver Case Style: TSSOP
- No. of Pins: 16Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q100
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 1370
- Dimming Control Type: PWM
- Efficiency: 92%
- Input Voltage: 6.3V to 60V
- LED Driver Application: Can be used to drive in excess of 15 LEDs in series
- Operating Temperature Range: -40°C to +125°C
- Output Current: 300mA
