description

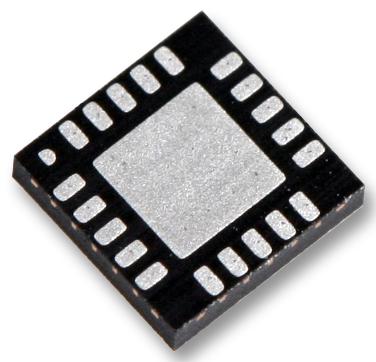

MAXIM INTEGRATED / ANALOG DEVICES - MAX15020ATP+ - DC-DC Switching Buck (Step Down) Regulator, Adjustable, 7.5V-40Vin, 500mV-36Vout, 2Aout, TQFN-EP-20
- Topology: Buck (Step Down)
- Input Voltage Min: 7.5V
- Input Voltage Max: 40V
- No. of Outputs: 1Outputs
- DC / DC Converter IC Case: TQFN
- No. of Pins: 20Pins
- Output Current: 2A
- Output Voltage Min: 500mV
- Output Voltage Max: 36V
- Switching Frequency: 550kHz
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Adjustable Output Voltage Min: 0.5V
- Base Number: 15020
- Frequency: 550kHz
- Input Voltage: 40V
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Output Voltage: 36V
- Primary Input Voltage: 40V
- Supply Voltage Min: 7.5V
- Switch Output Current Isw Max: 4.5A
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Step Down
