description

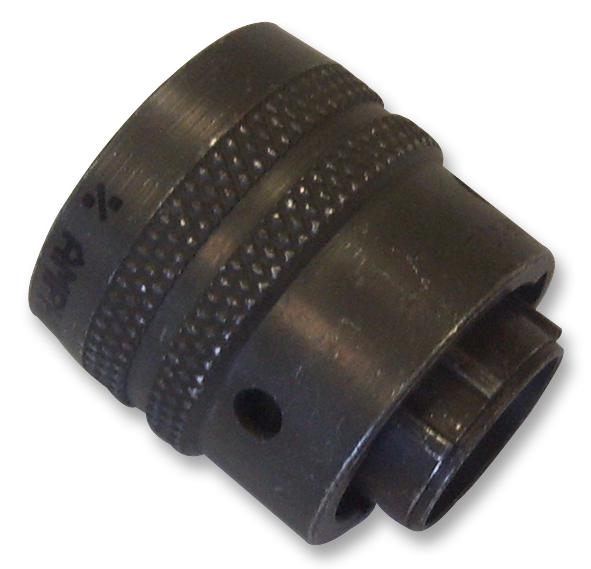

AMPHENOL INDUSTRIAL - MS3116P14-19P - Circular Connector, MIL-DTL-26482 Series I, Straight Plug, 19 Contacts, Solder Pin, Bayonet, 14-19
- Military Specification: MIL-DTL-26482 Series I
- Circular Connector Shell Style: Straight Plug
- No. of Contacts: 19Contacts
- Circular Contact Type: Solder Pin
- Coupling Style: Bayonet
- Insert Arrangement: 14-19
- Connector Body Material: Aluminium Alloy Body
- Connector Body Plating: Olive Drab Chromate over Cadmium
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insert Rotation: N
- Service Class: Environmentally Sealed, Potting Cup
- Product Range: MIL-DTL-26482 Series I
