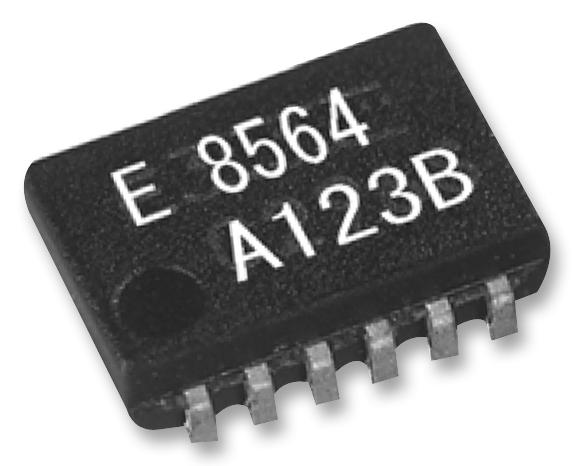

EPSON - Q418564C20005 RX-8564LC - RTC IC, YYYY:MM:DD:Hr:Min:Secs, 12Hr / 24Hr, 1.8 V to 5.5 V, VSOJ, 12Pins, I2C
- Date Format: YYYY
- Clock Format: 12Hr / 24Hr
- Clock IC Type: RTC
- Supply Voltage Min: 1.8V
- Supply Voltage Max: 5.5V
- Clock IC Case Style: VSOJ
- No. of Pins: 12Pins
- IC Interface Type: I2C
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: -
- Base Number: 8564
- Clock Frequency: 32.768kHz
- IC Case Style: VSOJ
- No. of Outputs: 3Outputs
- Operating Temperature Range: -40°C to +85°C
- RTC Features: Fixed-Cycle Timer Interrupt
- Supply Voltage Range: 1.8V to 5.5V
- Termination Type: Surface Mount Device
