Omschrijving

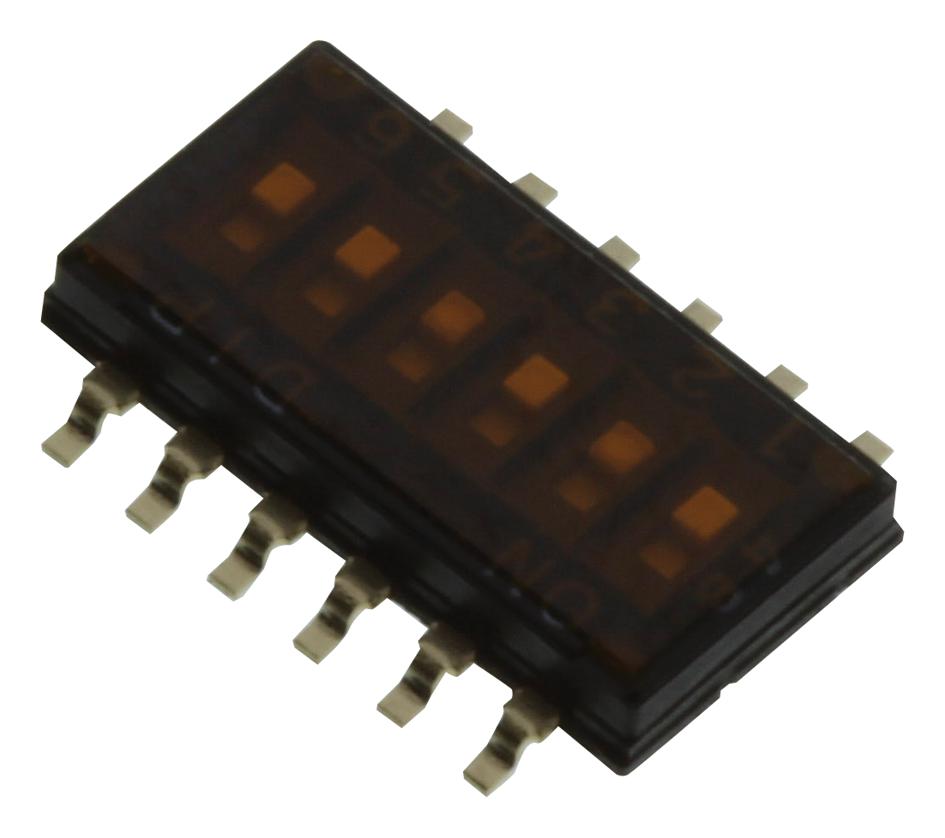

OMRON - A6S-6102-H - DIP / SIP Switch, 6 Circuits, Slide, Surface Mount, SPST, 24 VDC, 25 mA
- No. of Circuits: 6Circuits
- Switch Actuator Style: Slide
- Switch Mounting: SMD
- Contact Configuration: SPST
- Contact Voltage DC Max: 24VDC
- Contact Current DC Max: 25mA
- Product Range: A6S-H Series
- Switch Type: DIP Sealed
- Actuation Type: Flat
- Contact Resistance: 200mohm
- Contact Voltage DC Min: 3.5VDC
- Dielectric Strength VDC: 500VAC
- External Depth: 6.2mm
- External Length / Height: 3mm
- External Width: 16.18mm
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 250VDC
- Lead Spacing: 2.54mm
- No. of Electrical Operations: 1000
- No. of Mechanical Operations: 1000
- No. of Positions: 6Ways
- Operating Force: 0.29N
- Operating Force Min: 30gf
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Pin Configuration: DIL
- Pitch Spacing: 2.54mm
- Row Pitch: 9.8mm
- Switching Current DC Max: 25mA
- Switching Current DC Min: 10µA
