Omschrijving
- Automotive Qualification Standard: -
- Channel Type: N Channel
- Continuous Drain Current Id: 60A
- Continuous Drain Current Id N Channel: 60A
- Continuous Drain Current Id P Channel: 60A
- Drain Source On State Resistance N Channel: 0.0027ohm
- Drain Source On State Resistance P Channel: 0.0027ohm
- Drain Source Voltage Vds: 25V
- Drain Source Voltage Vds N Channel: 25V
- Drain Source Voltage Vds P Channel: 25V
- Gate Source Threshold Voltage Max: 2.3V
- MSL: MSL 1 - Unlimited
- No. of Pins: 8Pins
- On Resistance Rds(on): 0.0027ohm
- Operating Temperature Max: 150°C
- Power Dissipation N Channel: 69.4W
- Power Dissipation P Channel: 69.4W
- Power Dissipation Pd: 69.4W
- Product Range: TrenchFET Series
- Qualification: -
- Rds(on) Test Voltage: 10V

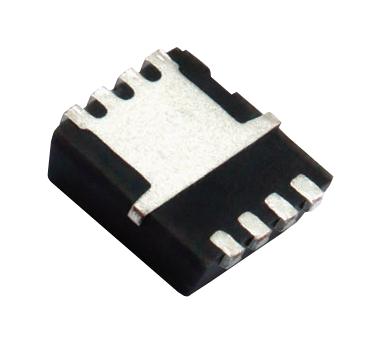

- Transistor Case Style: PowerPAK 1212
- Transistor Mounting: Surface Mount
- Transistor Polarity: N Channel
