Omschrijving

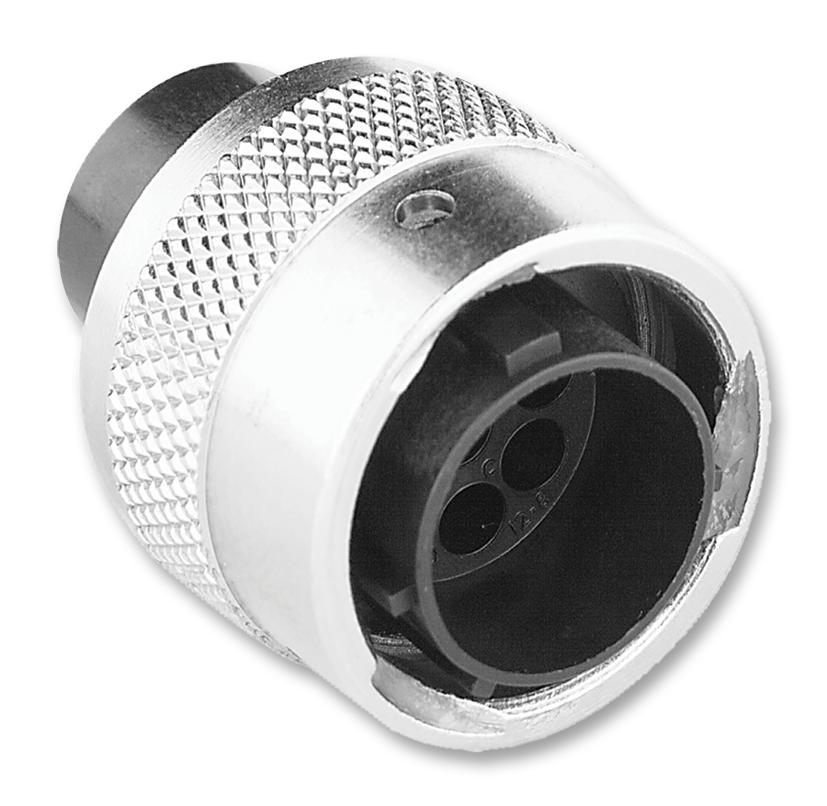

SOURIAU-SUNBANK / EATON - UT0W62255PH - Circular Connector, Souriau Trim Trio UT0 Series, Straight Plug, 55 Contacts
- Product Range: Trim Trio UT0W Series
- Circular Connector Shell Style: Straight Plug
- No. of Contacts: 55Contacts
- Circular Contact Type: Crimp Pin - Contacts Not Supplied
- Coupling Style: Bayonet
- Connector Body Material: Zinc Alloy Body
- Connector Body Plating: Nickel
- Contact Material: -
- Contact Plating: -
- SVHC: No SVHC (15-Jan-2019)
- Connector Mounting: Cable Mount
- Connector Shell Size: 22
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Flammability Rating: UL94V-0
- Gender: Plug
- IP / NEMA Rating: IP67, IP68, IP69K
- Insert Arrangement: 22-55
- Insulation Resistance: 5000Mohm
- No. of Mating Cycles: 500
- No. of Positions: 55Ways
- Operating Temperature Max: +105°C
- Operating Temperature Min: -40°C
- Test Voltage: 1500V
- Voltage Rating VAC: 750V
