Description

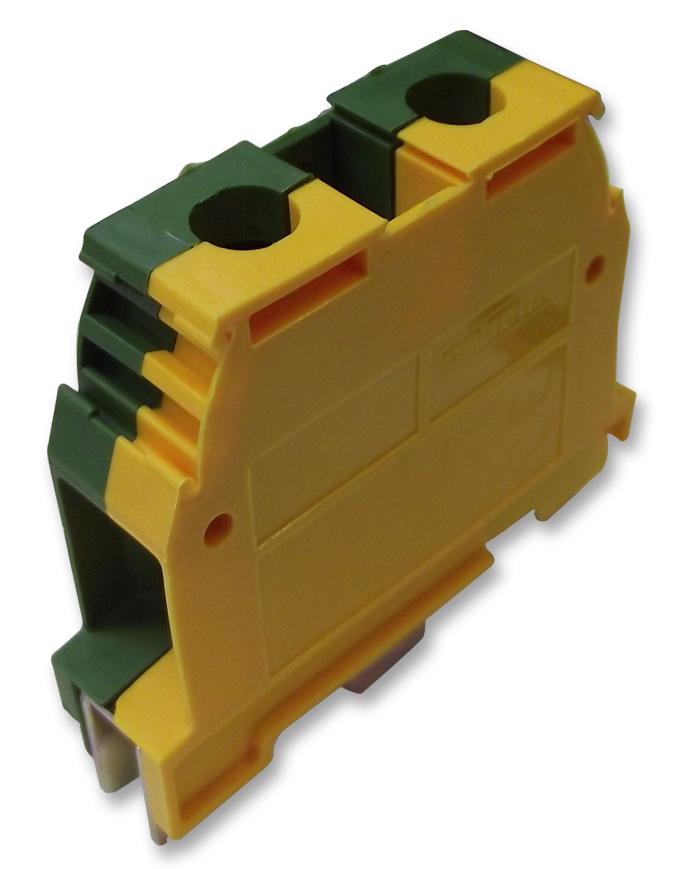

ENTRELEC - TE CONNECTIVITY - 016513023 - DIN Rail Mount Terminal Block, 6 Ways, 18 AWG, 4 AWG, 16 mm², Screw
- No. of Positions: 6Ways
- Wire Size AWG Min: 18AWG
- Wire Size AWG Max: 4AWG
- Conductor Area CSA: 16mm²
- Wire Connection Method: Screw
- Rated Current: -
- Rated Voltage: -
- No. of Levels: 1
- Product Range: -
- Approval Category: CEGB, CSA, DEMKO, EEXiL/II, EEXei, GOST, SEMKO, SETI, NEMKO, UL Recognised, VDE (750Vac)
- Cable Diameter Max: 16mm
- Cable Diameter Min: 2.5mm
- Colour: Green / Yellow
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- Contact Material: Copper
- Contact Plating: Nickel Plated Contacts
- External Width: 12mm
- Material: Polyamide 6.6
- Operating Temperature Max: 130°C
- Operating Temperature Min: -55°C
- Pitch Spacing: 12mm
- Voltage Rating VAC: 800V
- Wire Area Size Max: 16mm²
- Wire Area Size Min: 4mm²
- Working Voltage: 800V
