Description

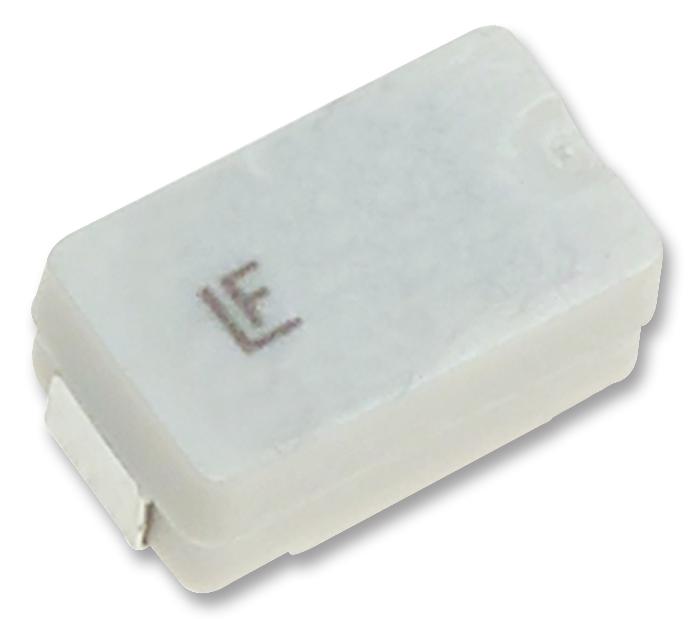

LITTELFUSE - 045903.5UR - Fuse, Surface Mount, 3.5 A, Very Fast Acting, 125 VAC, 125 VDC, 7.2mm x 4.3mm, PICO 459
- Fuse Current: 3.5A
- Product Range: PICO Series
- Voltage Rating VAC: 125VAC
- Voltage Rating V DC: 125VDC
- Blow Characteristic: Very Fast Acting
- Fuse Case Style: SMD
- Breaking Capacity Current AC: 50A
- Breaking Capacity Current DC: 300A
- Breaking Capacity: 50A @ 125V AC, 300A @ 125V DC
- Fuse Type Blowing Characteristic: Very Fast Acting
