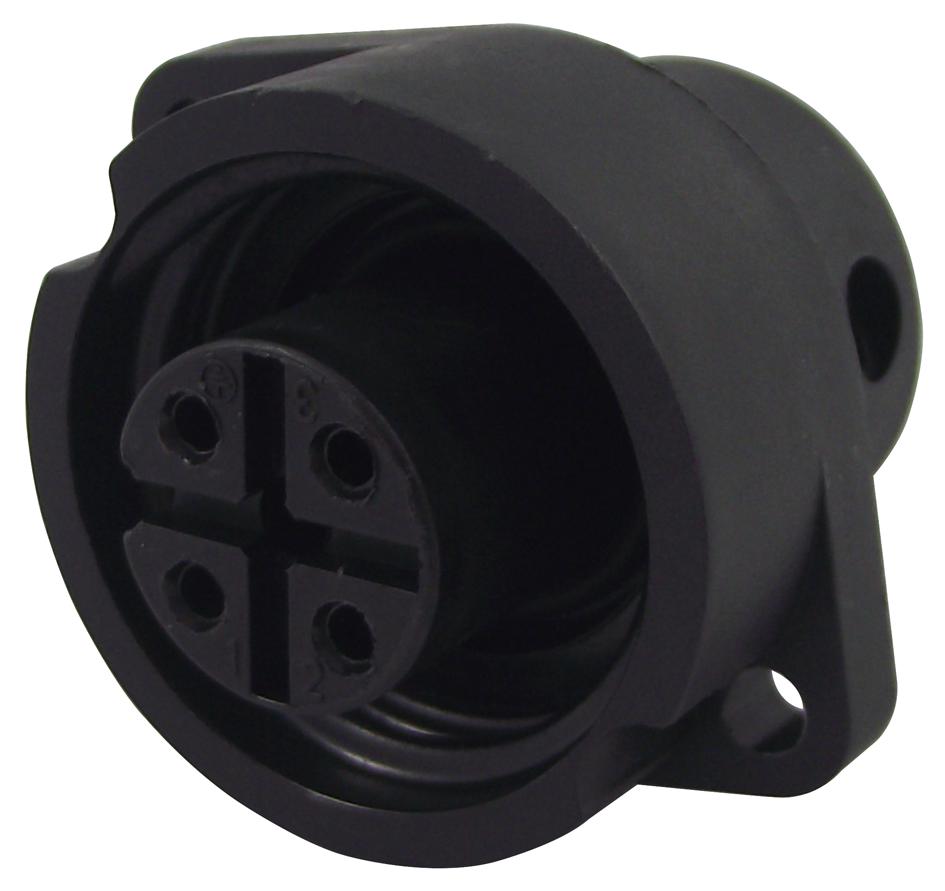

BINDER - 09-4224-00-04 - Circular Connector, 693 Series, Panel Mount Receptacle, 4 Contacts, Screw Socket, Metal Body
- Product Range: 693 Series
- Circular Connector Shell Style: Panel Mount Receptacle
- No. of Contacts: 4Contacts
- Circular Contact Type: Screw Socket
- Coupling Style: -
- Connector Body Material: Metal Body
- Connector Body Plating: -
- Contact Material: Bronze
- Contact Plating: Silver
- SVHC: Lead (27-Jun-2018)
- Connector Mounting: Panel Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Silver Plated Contacts
- Contact Termination: Screw
- Contact Termination Type: Screw
- Current Rating: 16A
- Flammability Rating: UL94V-0
- Gender: Receptacle
- IP / NEMA Rating: IP67
- No. of Mating Cycles: 500
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Termination Type: Screw
- Voltage Rating VAC: 400V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.5mm²
- Wire Size AWG Max: 14AWG
- Wire Size AWG Min: 20AWG
- Withstand Voltage: 6000V
