Description

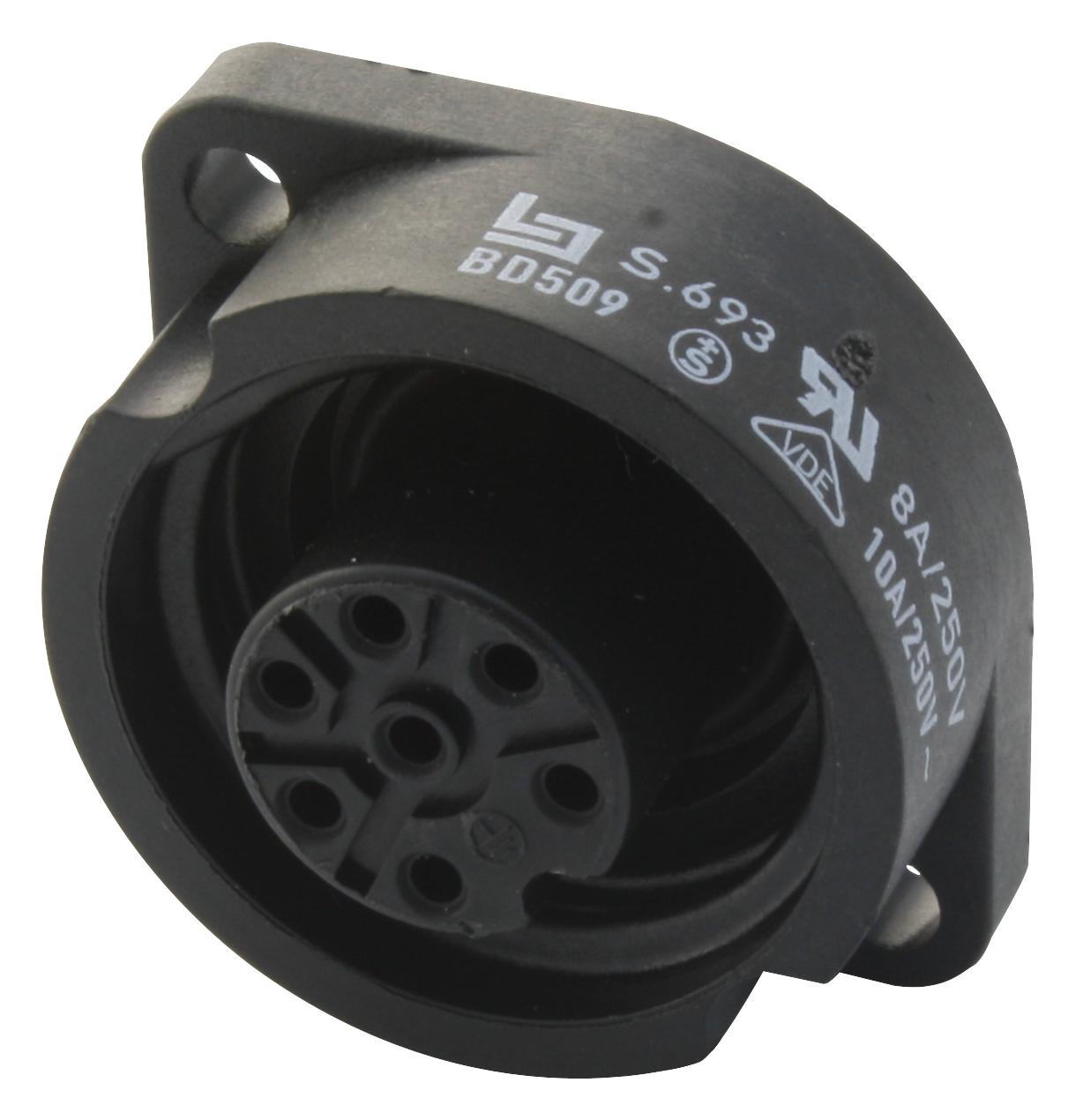

BINDER - 09-4228-00-07 - Circular Connector, 693 Series, Panel Mount Receptacle, 7 Contacts, Solder Socket, Metal Body
- Product Range: 693 Series
- Circular Connector Shell Style: Panel Mount Receptacle
- No. of Contacts: 7Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: -
- Connector Body Material: Metal Body
- Connector Body Plating: -
- Contact Material: Bronze
- Contact Plating: Silver
- SVHC: Lead (27-Jun-2018)
- Connector Mounting: Panel Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Silver Plated Contacts
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 10A
- Flammability Rating: UL94V-0
- Gender: Receptacle
- IP / NEMA Rating: IP67
- No. of Mating Cycles: 500
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Termination Type: Solder
- Voltage Rating VAC: 250V
- Wire Area Size Max: 0.75mm²
- Wire Size AWG Max: 20AWG
- Withstand Voltage: 4000V
