Description

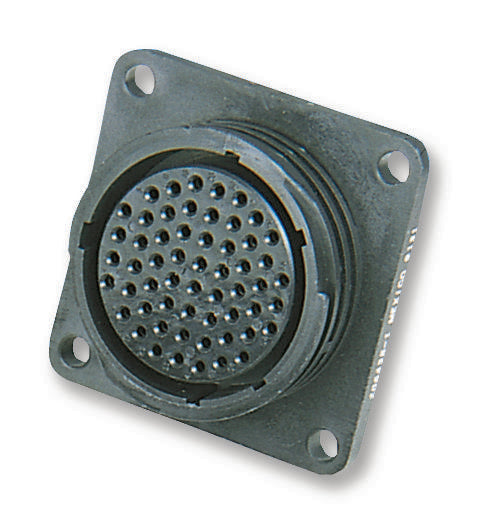

AMP - TE CONNECTIVITY - 206438-1 - Circular Connector, CPC Series 2, Flange Mount Receptacle, 57 Contacts, Thermoplastic Body
- Product Range: CPC Series 2
- Circular Connector Shell Style: Flange Mount Receptacle
- No. of Contacts: 57Contacts
- Circular Contact Type: -
- Coupling Style: -
- Connector Body Material: Thermoplastic Body
- Connector Body Plating: -
- Contact Material: -
- Contact Plating: -
- SVHC: No SVHC (15-Jan-2019)
- Colour: Black
- Connector Mounting: Panel Mount
- Connector Shell Size: 23
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Current Rating: 7.5A
- Flammability Rating: UL94V-0
- Gender: Receptacle
- Insert Arrangement: 23-57
- Insulation Resistance: 5000Mohm
- No. of Positions: 57Ways
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Panel Cutout Diameter: 40.9mm
- Voltage Rating VAC: 250V
- Working Voltage: 250V
