Description

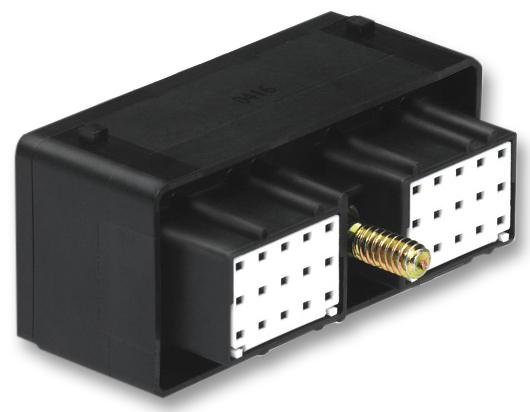

CINCH CONNECTIVITY SOLUTIONS - 5810118023 - Heavy Duty Connector Base, MODICE, Cinch header connector, Nylon (Polyamide), Glass Filled Body
- Product Range: MODICE Series
- Heavy Duty Connector Type: Insert
- No. of Contacts: 18 Contacts
- Rectangular Shell Size: -
- Gender: Receptacle
- Heavy Duty Contact Type: Crimp Socket
- Current Rating: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Category: SAE-J1455, SAE-J2030
- Connector Body Material: Nylon (Polyamide), Glass Filled Body
- Contact Gender: Socket
- Contact Resistance: 10mohm
- Contact Termination: Crimp
- Contact Termination Type: Crimp
- External Depth: 32.3mm
- External Length / Height: 28.3mm
- External Width: 43.8mm
- For Use With: Cinch header connector
- No. of Contacts: 18Contacts
- No. of Rows: 3 Row
- No. of Rows: 3Rows
- Operating Temperature Max: +85°C
- Operating Temperature Min: -40°C
