Description

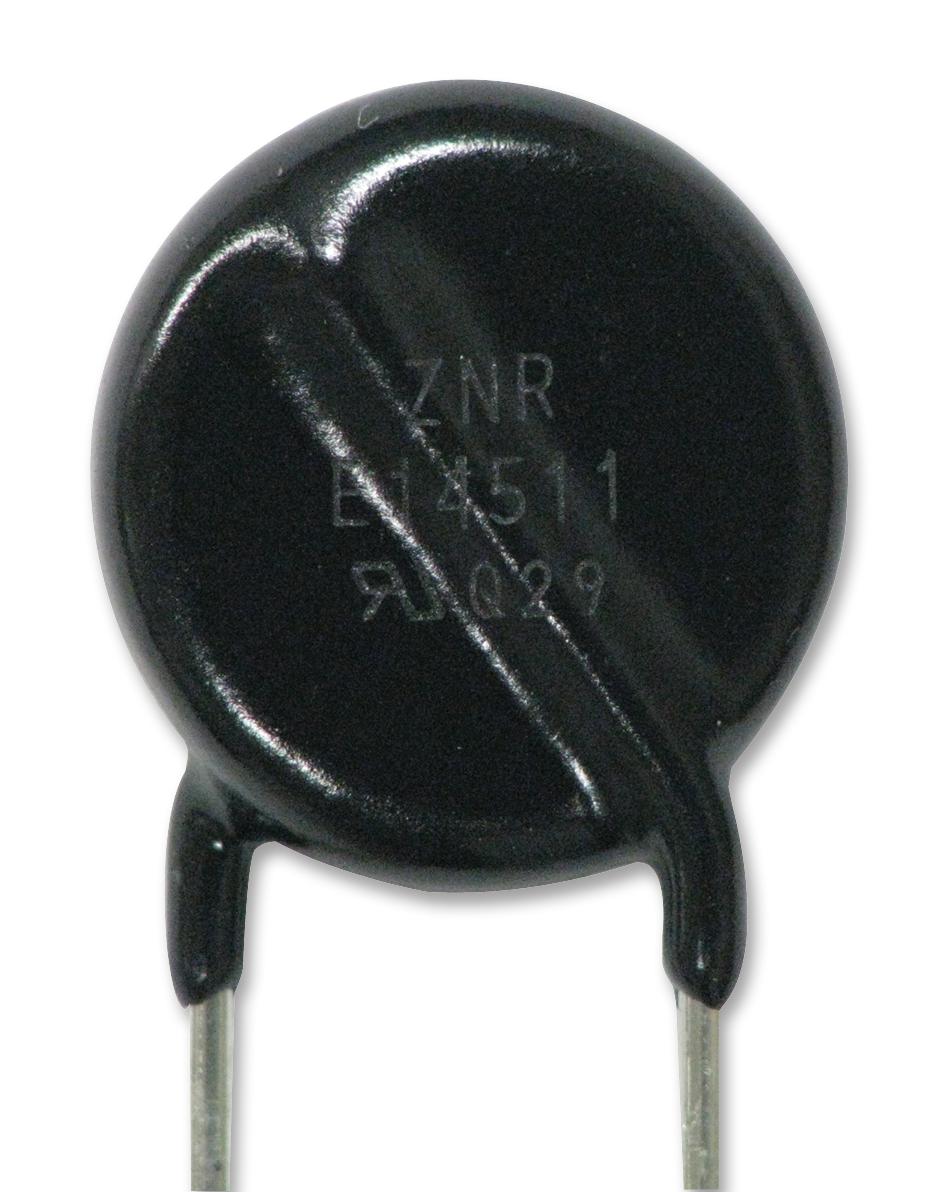

PANASONIC - ERZE10A821 - TVS Varistor, 625 V, 825 V, E10, 1.355 kV, Disc 12.5mm, Zinc Oxide Non-Linear Resistor (ZNR)
- Voltage Rating VAC: 625V
- Voltage Rating V DC: 825V
- Product Range: E10 Series
- Clamping Voltage Vc Max: 1.355kV
- Varistor Case Style: Disc 12.5mm
- Varistor Type: Zinc Oxide Non-Linear Resistor (ZNR)
- Peak Surge Current @ 8/20µs: 4.5kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 168J
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Operating Temperature Range: -40°C to +85°C
