Description

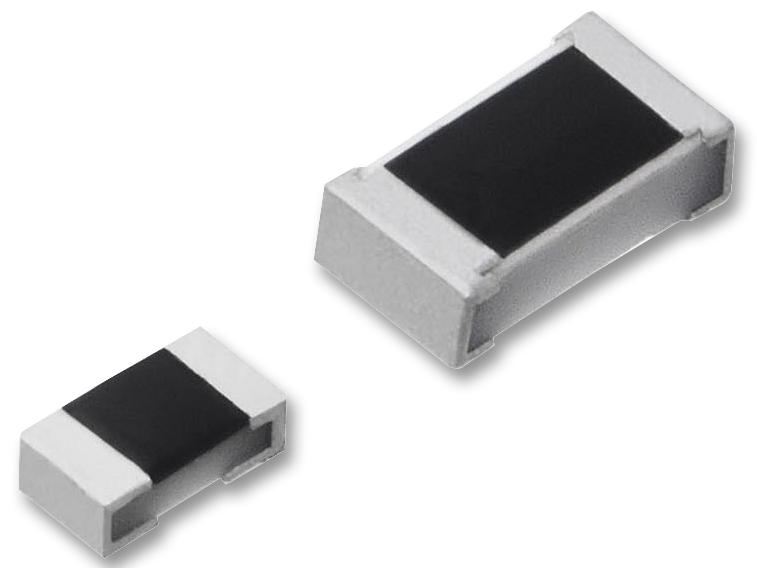

PANASONIC - EZJP0V6R8GA - TVS Varistor, 3.7 V, EZJP, 0402 [1005 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: -
- Voltage Rating V DC: 3.7V
- Product Range: EZJP Series
- Clamping Voltage Vc Max: -
- Varistor Case Style: 0402 [1005 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 3A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance: 100pF
- Capacitance Measurement Frequency: 1MHz
- External Depth: 0.5mm
- External Length / Height: 0.5mm
- External Width: 1mm
- Operating Temperature Range: -40°C to +85°C
- Suppressor Type: Varistor
- Varistor Voltage @ 1mA: 6.8V
