Description

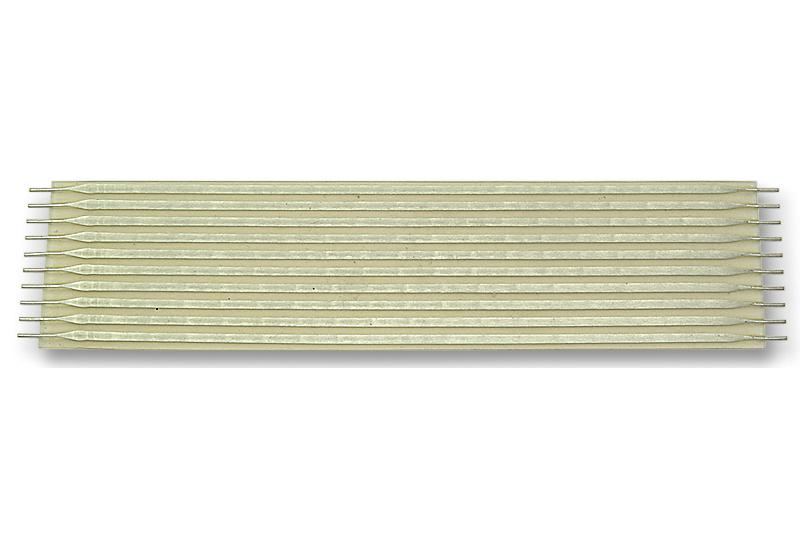

TE CONNECTIVITY - FST-21A-10 - Ribbon Cable, Jumper PTFE Cable, 10 Ways, 76 mm, 2.54 mm, Flexstrip/FST
- No. of Positions: 10Ways
- Cable Length - Imperial: -
- Cable Length - Metric: 76m
- Connector Pitch: 2.54mm
- Cable Pitch: 22.86mm
- Product Range: Flexstrip/FST Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: UL
- Cable Length: 1"
- Cable Type: Flat (Ribbon)
- Colour: Grey
- Conductor Make-up: 1/24AWG
- Conductor Material: Copper
- Connector Type A: Straight Pin
- Connector Type B: Straight Pin
- Current Rating: 2A
- External Width: 24.1mm
- Full Power Rating Temperature: 150°C
- Impedance: 101ohm
- Jacket Colour: Grey
- Jacket Material: PTFE
- No. of Contacts: 10Contacts
- No. of Cores: 10Core
- No. of Max Strands x Strand Size: Solid
- Operating Temperature Max: 150°C
- PCB Hole Diameter: 1mm
- Pitch Spacing: 2.54mm
- Resistance per Metre: 0.21ohm/m
- Voltage Rating: 300VAC
