Description

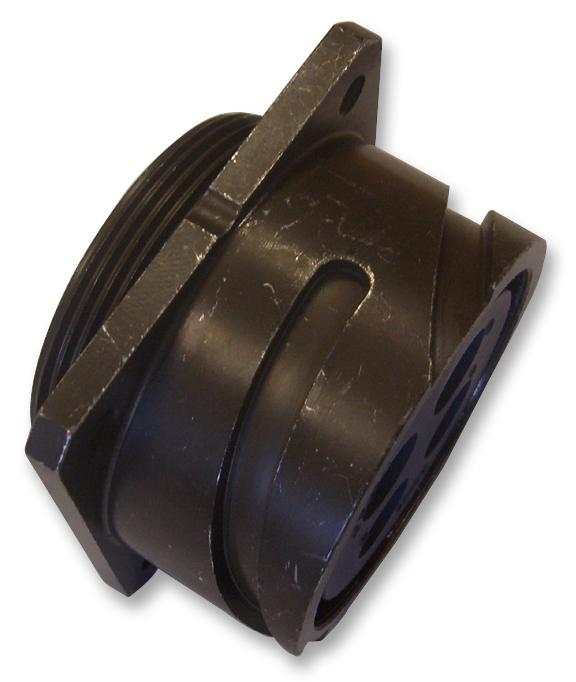

AMPHENOL INDUSTRIAL - GTC030R22-23P-LC - Circular Connector, Wall Mount Receptacle, 8 Contacts, Crimp Pin - Contacts Not Supplied
- Product Range: -
- Circular Connector Shell Style: Wall Mount Receptacle
- No. of Contacts: 8Contacts
- Circular Contact Type: Crimp Pin - Contacts Not Supplied
- Coupling Style: Reverse Bayonet
- Insert Arrangement: 22-23
- Connector Body Material: Aluminium Alloy Body
- Connector Body Plating: Olive Drab Chromate over Cadmium
- Contact Material: Copper Alloy
- Contact Plating: Silver
- Insert Rotation: N
- Service Class: -
- Equivalent Military Specification: MIL-DTL-5015 Series
- Approval Category: MIL-C-5015
- Connector Mounting: Flange Mount
- Connector Shell Size: 22
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Gender: Receptacle
- No. of Positions: 8Ways
