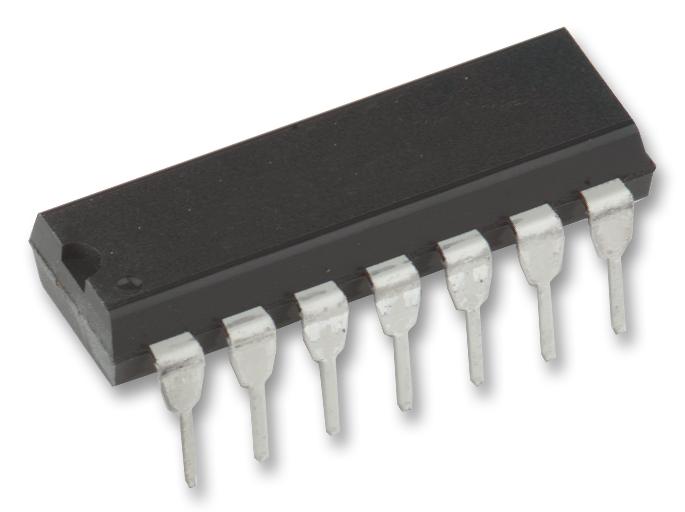

IR2113PBF Ic, MOSFET Driver, High/Low Side, Dip-14 INFINEON

INFINEONSKU: IR2113PBF Order code: 9101748

Price:
Sale price€5,29

Tax included Shipping calculated at checkout

Stock:
In stock (1774 units), ready to be shipped

Description

INFINEON - IR2113PBF - Dual Power IC, High Side And Low Side, 10V-20V Supply, 2.5A Out, 94ns Delay, DIP-14

  • Driver Configuration: High Side and Low Side
  • Peak Output Current: 2.5A
  • Supply Voltage Min: 10V
  • Supply Voltage Max: 20V
  • Driver Case Style: DIP
  • No. of Pins: 14Pins
  • Input Delay: 120ns
  • Output Delay: 94ns
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Base Number: 2113
  • Device Type: Power
  • IC Generic Number: 2113
  • Logic Function Number: 2113
  • Logic IC Function: Independent High & Low Side
  • Module Configuration: High Side, Low Side
  • No. of Outputs: 2Outputs
  • Offset Voltage: 600V
  • Operating Temperature Range: -40°C to +125°C
  • Output Sink Current Min: 2000mA
  • Output Source Current Min: 2000mA
  • Output Voltage: 620V
  • Output Voltage Max: 20V
  • Output Voltage Min: 10V
  • Power Dissipation Pd: 1.6W
  • Supply Voltage Range: 10V to 20V
  • Turn Off Time: 94ns
  • Turn On Time: 120ns
  • Voltage Vcc Max: 25V
