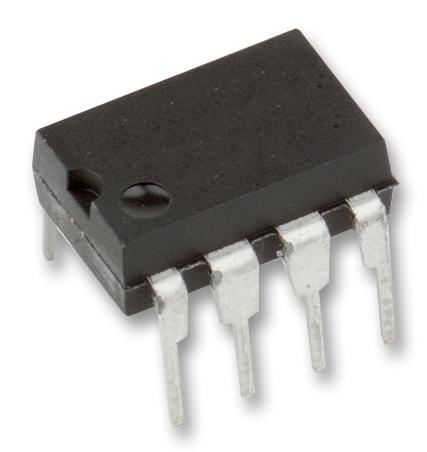

IR2125PBF Ic, MOSFET Driver, High/Low Side, Dip-8 INFINEON

INFINEONSKU: IR2125PBF Order code: 9101721

Price:
Sale price€6,30

Tax included Shipping calculated at checkout

Stock:
In stock (2713 units), ready to be shipped

Description

INFINEON - IR2125PBF - Power IC, High Side And Low Side, 0V-18V Supply, 3.3A Out, 200ns Delay, DIP-8

  • Driver Configuration: High Side and Low Side
  • Peak Output Current: 3.3A
  • Supply Voltage Min: 0V
  • Supply Voltage Max: 18V
  • Driver Case Style: DIP
  • No. of Pins: 8Pins
  • Input Delay: 170ns
  • Output Delay: 200ns
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Base Number: 2125
  • Device Type: Power
  • IC Generic Number: 2125
  • Logic Function Number: 2125
  • Logic IC Function: High Side
  • Module Configuration: High Side
  • No. of Outputs: 1Outputs
  • Offset Voltage: 500V
  • Operating Temperature Range: -40°C to +125°C
  • Output Current: 1.6A
  • Output Sink Current Min: 2000mA
  • Output Source Current Min: 1000mA
  • Output Voltage: 518V
  • Output Voltage Max: 18V
  • Output Voltage Min: 12V
  • Power Dissipation Pd: 1W
  • Supply Voltage Range: 0V to 18V
  • Turn Off Time: 150ns
  • Turn On Time: 150ns
  • Voltage Vcc Max: 25V
  • Voltage Vcc Min: 10V
