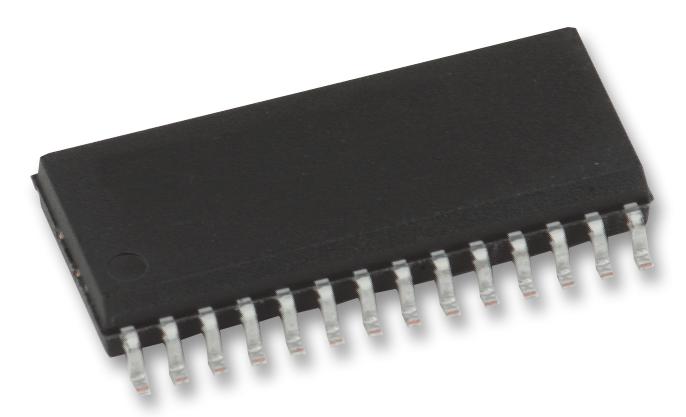

IR2130SPBF Driver, MOSFET/IGBT, 2130, SOIC28 INFINEON

INFINEONSKU: IR2130SPBF Order code: 9101845

Price:
Sale price€10,21

Tax included Shipping calculated at checkout

Stock:
In stock (1769 units), ready to be shipped

Documenten en downloads

Description

INFINEON - IR2130SPBF - Power Driver, 3 Phase Bridge, 10V-20V Supply, 500mA Out, 425ns Delay, SOIC-28

  • Driver Configuration: 3 Phase Bridge
  • Peak Output Current: 500mA
  • Supply Voltage Min: 10V
  • Supply Voltage Max: 20V
  • Driver Case Style: SOIC
  • No. of Pins: 28Pins
  • Input Delay: 675ns
  • Output Delay: 425ns
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (27-Jun-2018)
  • Base Number: 2131
  • Device Type: Power
  • IC Generic Number: 2130
  • Logic Function Number: 2131
  • Logic IC Function: 3 High Side & 3 Low Side
  • Module Configuration: 3-Phase Bridge
  • No. of Outputs: 6Outputs
  • Offset Voltage: 600V
  • Operating Temperature Range: -40°C to +125°C
  • Output Current: 250mA
  • Output Resistance: 55ohm
  • Output Sink Current Min: 420mA
  • Output Source Current Min: 200mA
  • Output Voltage: 620V
  • Output Voltage Max: 20V
  • Output Voltage Min: 10V
  • Power Dissipation Pd: 1.6W
  • Supply Voltage Range: 10V to 20V
  • Turn Off Time: 0.6ns
  • Turn On Time: 1.3ns
  • Voltage Vcc Max: 25V
