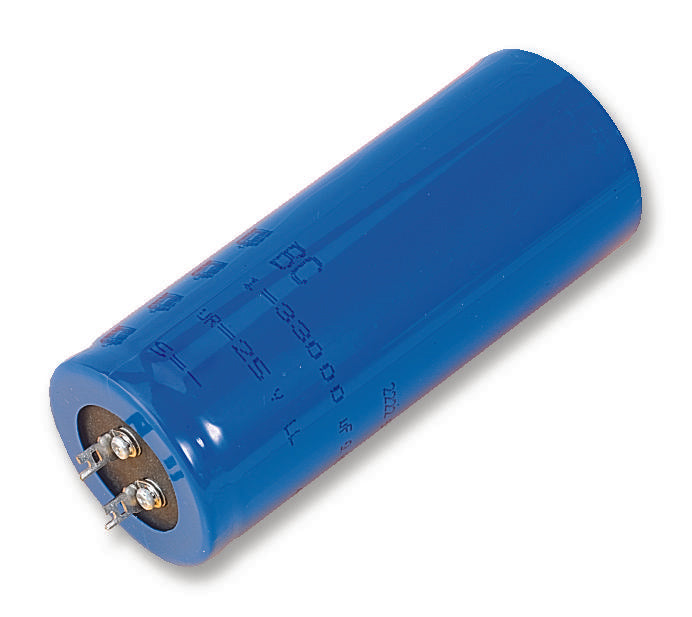

MAL205018332E3 Cap, 3300µF, 63V, Alu Elec, Solder Vishay

VISHAYSKU: MAL205018332E3 Order code: 1166587

Price:
Sale price€26,43

Tax included Shipping calculated at checkout

Stock:
In stock (343 units), ready to be shipped

Documenten en downloads

Description

VISHAY - MAL205018332E3 - Electrolytic Capacitor, Long Life, 3300 µF, 63 V, -10%, +30%, Solder Lug, 15000 hours @ 85°C

  • Capacitance: 3300µF
  • Voltage Rating: 63V
  • Product Range: 050 PED-PW Series
  • Lifetime @ Temperature: 15000 hours @ 85°C
  • Capacitance Tolerance: +30%, -10%
  • Capacitor Terminals: Solder Lug
  • Diameter: 35mm
  • Lead Spacing: 10mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Height: 40mm
  • ESR: 0.048ohm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • AC Ripple Current @ 100Hz: 3.6A
  • Capacitance Tolerance ±: +30%, -10%
  • Capacitor Mounting: Panel
  • Climatic Category: 40/085/56
  • External Length / Height: 40mm
  • Leakage Current: 1251.4µA
  • No. of Pins: 2Pins
  • Operating Life Temperature: 85°C
  • Operating Temperature Range: -40°C to +85°C
  • Operating life Time: 15000h
  • Power Factor: 0.38
  • Ripple Current AC: 3.6A
  • Ripple Current Frequency: 100Hz
  • Ripple Current Temperature: 85°C
  • Tolerance +: 0.3%
  • Tolerance -: 0.1%
  • Voltage Rating DC Max: 63V
  • Voltage Rating V DC: 63V
