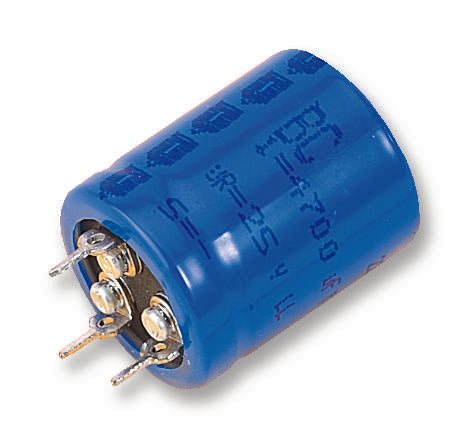

MAL205356102E3 Cap, 1000µF, 400V, 20% Vishay

VISHAYSKU: MAL205356102E3 Order code: 1166609

Price:
Sale price€59,30

Tax included Shipping calculated at checkout

Stock:
In stock (132 units), ready to be shipped

Documenten en downloads

Description

VISHAY - MAL205356102E3 - Electrolytic Capacitor, Long Life, 1000 µF, 400 V, ± 20%, Radial Leaded, 5000 hours @ 85°C, Polar

  • Capacitance: 1000µF
  • Voltage Rating: 400V
  • Product Range: 053 PEC-PW Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Radial Leaded
  • Diameter: 40mm
  • Lead Spacing: 20mm
  • Height: 100mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Lifetime @ Temperature: 5000 hours @ 85°C
  • ESR: 0.16ohm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • AC Ripple Current @ 100Hz: 4.05A
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Mounting: Through Hole
  • Climatic Category: 40/085/56
  • External Length / Height: 100mm
  • Leakage Current: 2404µA
  • No. of Pins: 5Pins
  • Operating Temperature Range: -40°C to +85°C
  • Operating life Time: 5000h
  • Ripple Current AC: 4.05A
  • Ripple Current Frequency: 100Hz
  • Ripple Current Temperature: 85°C
  • Tolerance +: 0.2%
  • Tolerance -: 0.2%
  • Voltage Rating DC Max: 400V
  • Voltage Rating V DC: 400V
