Description

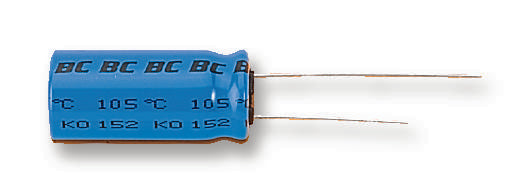

VISHAY - MAL215267229E3 - Electrolytic Capacitor, 22 µF, 450 V, ± 20%, Radial Leaded, 4000 hours @ 105°C, Polar
- Capacitance: 22µF
- Voltage Rating: 450V
- Product Range: 152 RMH Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 16mm
- Lead Spacing: 7.5mm
- Height: 25mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 4000 hours @ 105°C
- ESR: 14.5ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 150mA
- Capacitance Tolerance ±: ± 20%
- Capacitor Mounting: Through Hole
- External Length / Height: 25mm
- Impedance: 4.6ohm
- Lead Diameter: 0.6mm
- Lead Length: 5mm
- Leakage Current: 367µA
- No. of Pins: 2Pins
- Operating Life Temperature: 105°C
- Operating Temperature Range: -40°C to +105°C
- Operating life Time: 4000h
- Ripple Current AC: 19mA
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 105°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 450V
- Voltage Rating V DC: 450V
