Description

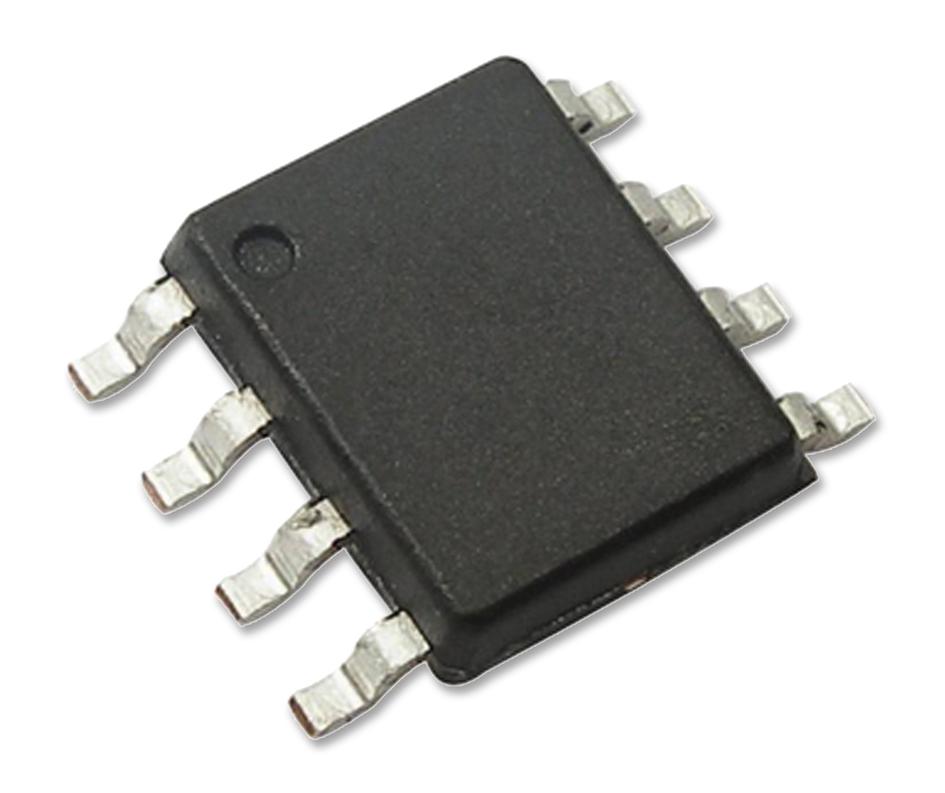

MAXIM INTEGRATED / ANALOG DEVICES - MAX16802BEUA+ - LED Driver, Boost, Buck, Flyback, SEPIC, 10.8V to 24V in, 262 kHz Switch. Freq., 100V/1A out, µMAX-8
- Device Topology: Non Isolated/Isolated Boost, Buck, Flyback, SEPIC
- Input Voltage Min: 10.8V
- Input Voltage Max: 24V
- Output Voltage Max: -
- Output Current Max: 1A
- Switching Frequency: 262kHz
- No. of Outputs: 1Outputs
- IC Mounting: SMD
- Driver Case Style: µMAX
- No. of Pins: 8Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 16802
- Device Type: LED
- Dimming Control Type: Linear, PWM
- Input Voltage: 10.8V to 24V
- LED Display Type: Discrete LED
- LED Driver Application: Commercial, Industrial Lighting
- Operating Temperature Range: -40°C to +85°C
- Output Current: 1A
- Output Voltage: 100V
- Supply Voltage Min: 10.8VDC
- Termination Type: Surface Mount Device
