Description

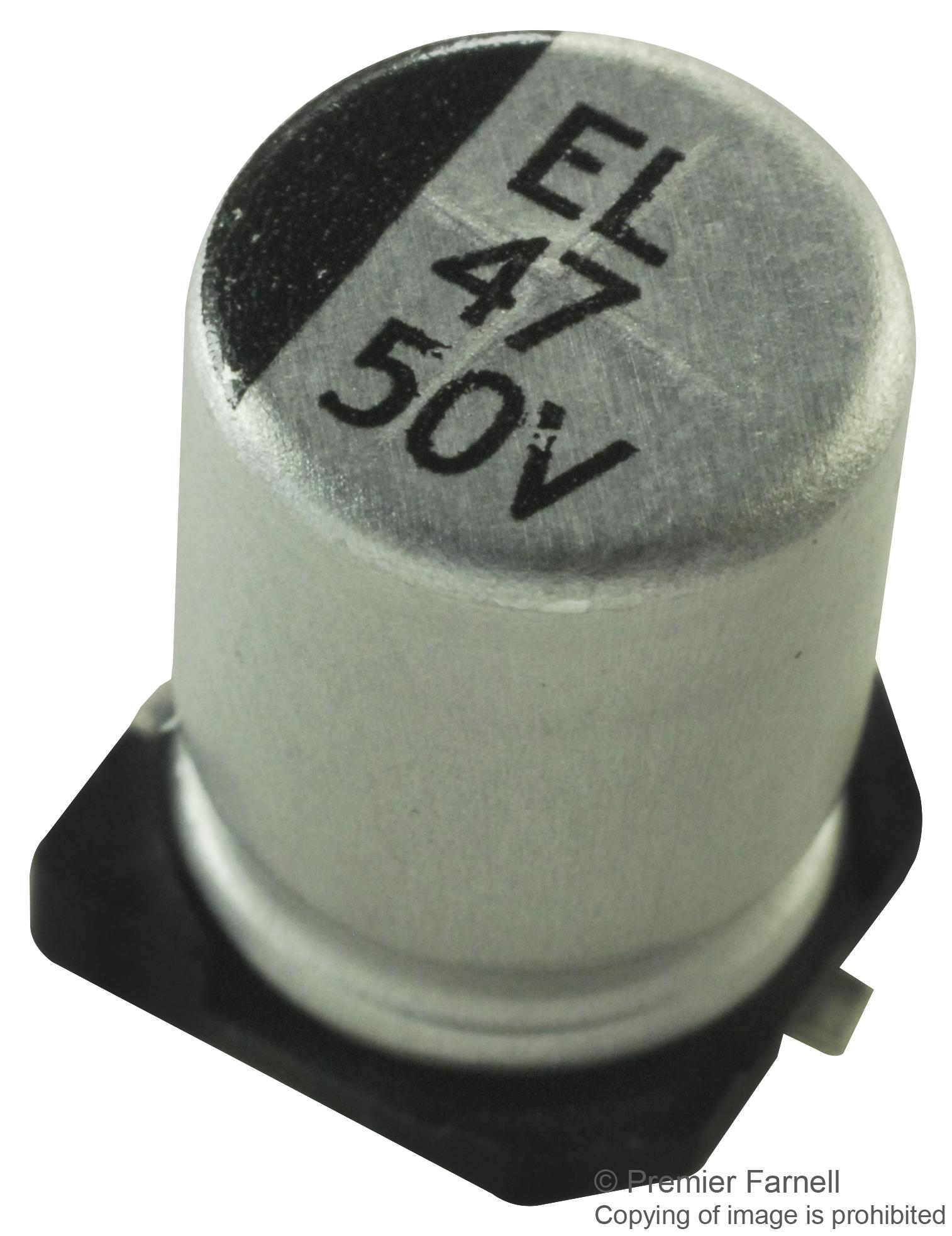

MULTICOMP PRO - MCEEL50V476M8X10.5 - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 47 µF, 50 V, 2000 hours @ 105°C, Polar
- AE Capacitor Case: Radial Can - SMD
- Capacitance: 47µF
- Voltage Rating: 50V
- ESR: -
- Product Range: MCEEL Series
- Lifetime @ Temperature: 2000 hours @ 105°C
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Ripple Current AC: 150mA
- Diameter: 8mm
- Height: 10.5mm
- Automotive Qualification Standard: -
- MSL: MSL 2 - 1 year
- Capacitance Tolerance: ± 20%
- Capacitance Tolerance ±: ± 20%
- Capacitor Case Style: Radial Can - SMD
- External Depth: 8.3mm
- External Length / Height: 10.5mm
- External Width: 8.3mm
- Frequency Tolerance: 120Hz
- Lead Cross-section Width: 1.4mm
- Leakage Current: 3µA
- Operating Temperature Range: -40°C to +105°C
- Operating life Time: 2000h
- Power Factor: 0.35
- Power Factor Frequency: 120Hz
- Reel Quantity: 500
- Tolerance +: 20%
- Tolerance -: 20%
- Tolerance Temperature: 20°C
- Voltage Rating V DC: 50V
