Description

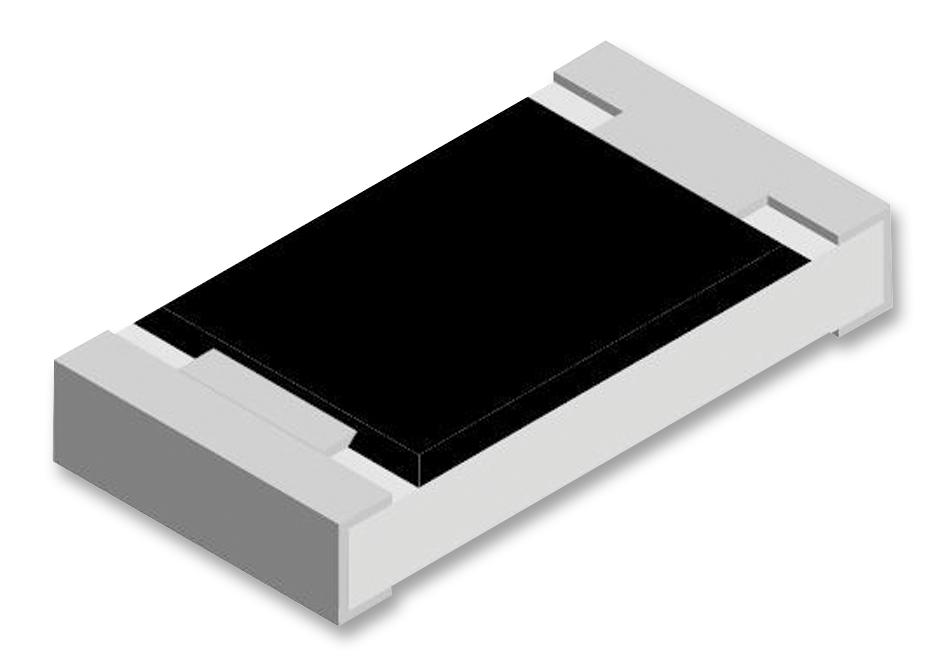

MULTICOMP PRO - MCHV06W8J0205T5E - SMD Chip Resistor, 2 Mohm, ± 5%, 125 mW, 1206 [3216 Metric], Thick Film, High Voltage
- Resistor Case Style: 1206 [3216 Metric]
- Resistance: 2Mohm
- Product Range: MCHV Series
- Voltage Rating: 400V
- Resistor Element Material: Thick Film
- Power Rating: 125mW
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 200ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 0.55mm
- External Length / Height: 3.1mm
- External Width: 1.55mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Overload Voltage: 1000V
- Resistor Mounting: Surface Mount Device
