Description

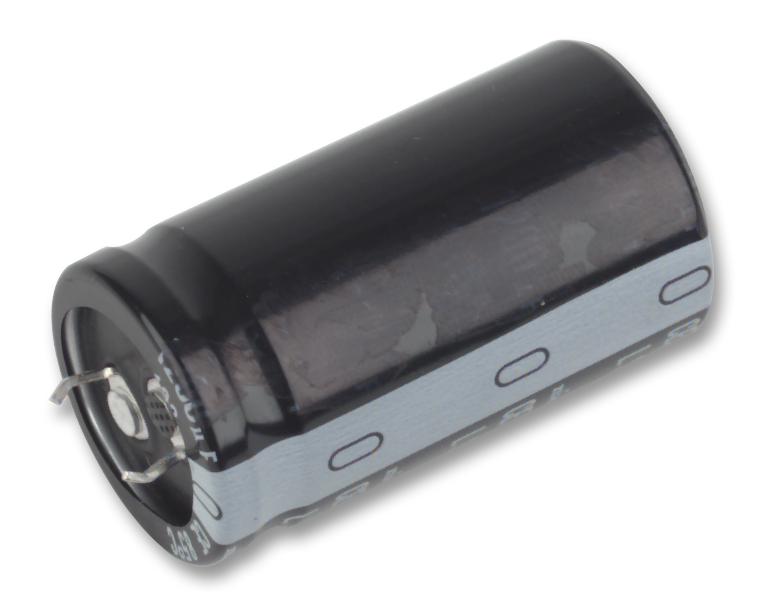

MULTICOMP PRO - MCLPR25V109M30X25 - Electrolytic Capacitor, 10000 µF, 25 V, ± 20%, Snap-In, 2000 hours @ 85°C
- Capacitance: 10000µF
- Voltage Rating: 25V
- Product Range: LPR Series PCB Mount
- Lifetime @ Temperature: 2000 hours @ 85°C
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Quick Connect, Snap-In
- Diameter: 30mm
- Lead Spacing: 10mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Height: 25mm
- ESR: -
- Automotive Qualification Standard: -
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 25mm
- No. of Pins: 2Pins
- Operating Life Temperature: 85°C
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 2000h
- PCB Hole Diameter: 2mm
- Ripple Current AC: 3.99A
- Ripple Current Frequency: 120Hz
- Ripple Current Temperature: 85°C
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 25V
