Description

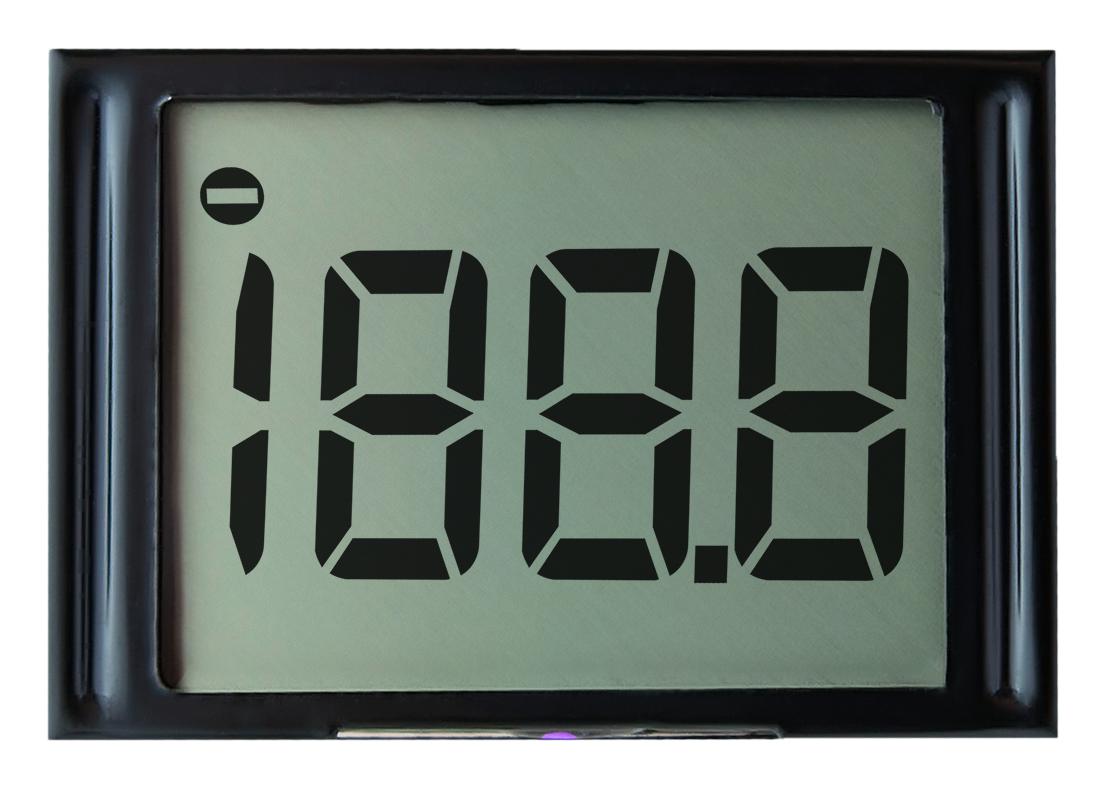

LASCAR - OEM 1B - Digital Panel Meter, 3-1/2 Digits, DC Voltage, 0mV to 200mV
- No. of Digits / Alpha: 3-1/2
- Meter Function: DC Voltage
- Meter Range: 0mV to 200mV
- Digit Height: 8mm
- Panel Cutout Height: 16.51mm
- Panel Cutout Width: 23.37mm
- Supply Voltage Min: 7.5VDC
- Supply Voltage Max: 14VDC
- Operating Temperature Min: 0°C
- Operating Temperature Max: 50°C
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Accuracy %: 0.1%
- Display Area Height: 8mm
- Display Size: 17.8mm x 13.4mm
- Display Technology: LCD
- External Depth: 5.3mm
- External Length / Height: 16.4mm
- External Width: 23.4mm
- Full Scale Reading: 200mV
- Operating Temperature Range: 0°C to +50°C
- Resolution: 0.1mV
- Supply Current: 150µA
- Supply Voltage Range: 7.5V DC to 14V DC
- Temperature Stabilty: 100ppm/°C
