Description

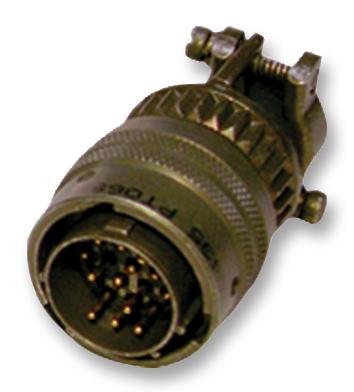

AMPHENOL INDUSTRIAL - PT05SE22-21P - Circular Connector, PT-SE, Straight Plug, 21 Contacts, Crimp Pin, Bayonet, 22-21
- Product Range: PT-SE Series, MIL-DTL-26482 Series I Equivalent
- Circular Connector Shell Style: Straight Plug
- No. of Contacts: 21Contacts
- Circular Contact Type: Crimp Pin
- Coupling Style: Bayonet
- Insert Arrangement: 22-21
- Connector Body Material: Aluminium Alloy Body
- Connector Body Plating: Olive Drab Chromate over Cadmium
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insert Rotation: N
- Service Class: Environmentally Sealed
- Approval Category: MIL-C-26482 Series I
