Description

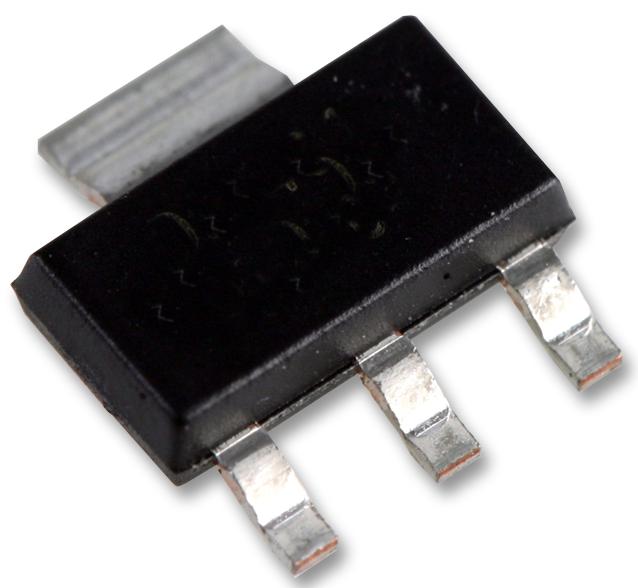

TEXAS INSTRUMENTS - TLV1117-33CDCY - Fixed LDO Voltage Regulator, 4.7V to 15V, 1.2V Dropout, 3.3Vout, 800mAout, SOT-223-3
- Output Type: Fixed
- Input Voltage Min: 4.7V
- Input Voltage Max: 15V
- Fixed Output Voltage Nom.: 3.3V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 800mA
- Dropout Voltage Vdo: 1.2V
- LDO Regulator Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Min: 0°C
- Operating Temperature Max: 125°C
- Product Range: 3.3V 800mA LDO Voltage Regulators
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (15-Jan-2019)
- Accuracy %: 2.5%
- Base Number: 1117
- No. of Outputs: 1Outputs
- Operating Temperature Range: 0°C to +125°C
- Operating Voltage Tolerance +: 0.2%
- Output Current Max: 0.8A
- Output Voltage Nom.: 3.3V
- Primary Input Voltage: 15V
- Supply Voltage Min: 2.7V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: LDO Fixed Positive
