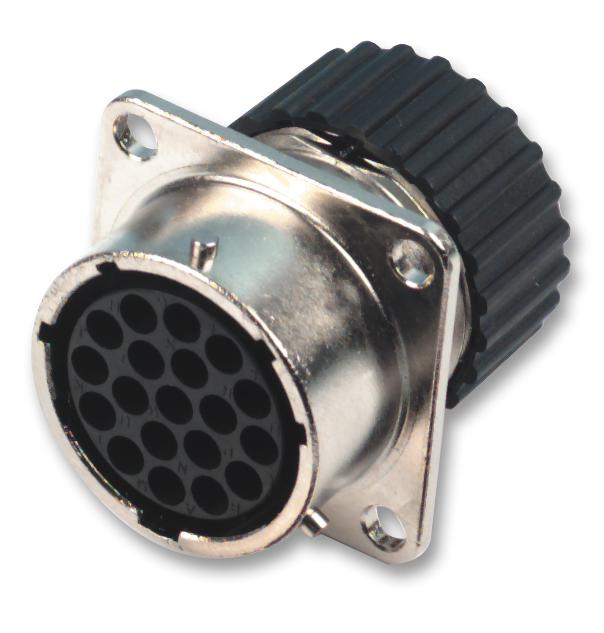

TNM0S16-0019S1L Socket, Panel, 19WAY ITT Cannon

ITT CANNONSKU: TNM0S16-0019S1L Order code: 1186741

Price:
Sale price€41,00

Tax included Shipping calculated at checkout

Stock:
In stock (98 units), ready to be shipped

Documenten en downloads

Description

ITT CANNON - TNM0S16-0019S1L - Circular Connector, Trident Neptune Metal Series, Panel Mount Receptacle, 19 Contacts, Crimp Socket

  • Product Range: Trident Neptune Metal Series
  • Circular Connector Shell Style: Panel Mount Receptacle
  • No. of Contacts: 19Contacts
  • Circular Contact Type: Crimp Socket
  • Coupling Style: Bayonet
  • Connector Body Material: Zinc Alloy Body
  • Connector Body Plating: Nickel
  • Contact Material: -
  • Contact Plating: -
  • Connector Mounting: Panel Mount
  • Connector Shell Size: 16
  • Connector Type: Circular Industrial
  • Contact Gender: Socket
  • Current per Signal Contact Max: 6A
  • Flammability Rating: UL94V-0
  • Gender: Receptacle
  • IP / NEMA Rating: IP67
  • Insert Arrangement: 0-19
  • Insulation Resistance: 5000Mohm
  • Locking Ring: Brass
  • No. of Positions: 19Ways
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • Range: 16
  • Voltage Rating VAC: 250V
  • Working Voltage: 250VAC
