Description

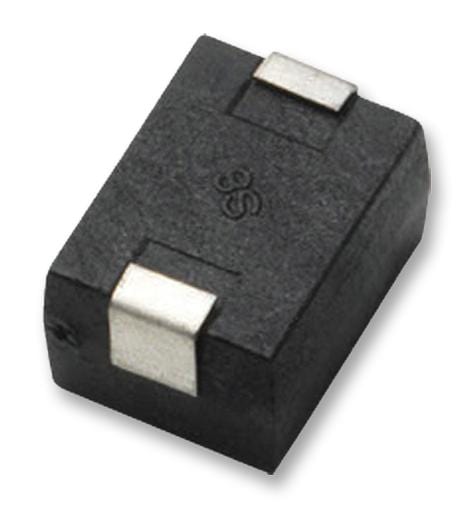

LITTELFUSE - V275SM7 - TVS Varistor, 275 V, 369 V, SM7, 710 V, SMD, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 275V
- Voltage Rating V DC: 369V
- Product Range: SM7 Series
- Clamping Voltage Vc Max: 710V
- Varistor Case Style: SMD
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 1.2kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 23J
- Automotive Qualification Standard: -
- Peak Pulse Current IPP @ 8/20µs: 1200A
- Surge Current: 1200A
- Varistor Voltage @ 1mA: 430V
- Varistor Voltage @ 1mA Max: 473V
- Varistor Voltage Tolerance +: 10%
- Varistor Voltage Tolerance -: 10%
