Description
- Voltage Rating VAC: 230V
- Voltage Rating V DC: 360V
- Product Range: VJ32 Series
- Clamping Voltage Vc Max: 595V
- Varistor Case Style: 3220

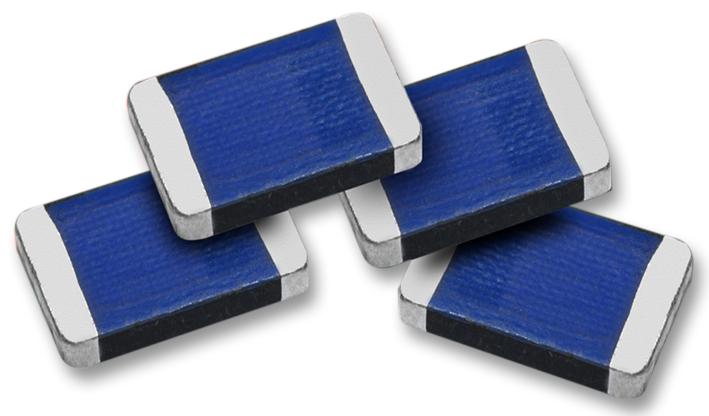

- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 400A
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 20J
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Capacitance: 100pF
- Clamping Voltage: 595V
- External Depth: 2.5mm
- External Length / Height: 8.2mm
- External Width: 8.2mm
- Operating Temperature Range: -55°C to +125°C
- Suppressor Type: Transient Voltage
- Surge Current: 400A
