Description

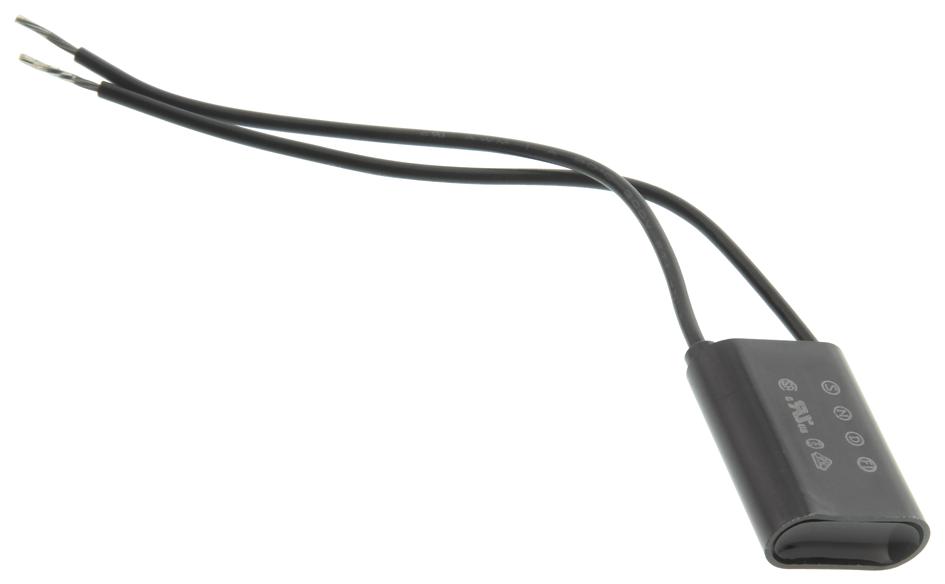

ROXBURGH EMC - XEB1201 - RC Network, Flying Leads, 0.1 µF, ± 20%, 120 ohm, ± 30%, 500 mW, 250 V
- Product Range: XEB Series
- Capacitance: 0.1µF
- Capacitance Tolerance: ± 20%
- Resistance: 120ohm
- Resistance Tolerance: ± 30%
- Resistor Power Rating: 500mW
- Voltage Rating VAC: 250V
- Voltage Rating V DC: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Category: CSA, DEMKO, NEMKO, SEMKO, UL, VDE
- Capacitance Tolerance +: 20%
- Capacitance Tolerance -: 20%
- Connector Type: Wire Leaded
- Control Voltage AC Max: 250V
- External Depth: 8.5mm
- External Length / Height: 23mm
- External Width: 19mm
- Lead Diameter: 20mm
- Lead Length: 100mm
- No. of Phases: Single Phase
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Voltage Range: 250V AC to 500V AC
- Power Dissipation Ptot Max: 0.5W
- Resistance Tolerance +: 30%
- Resistance Tolerance -: 30%
- Suppressor Type: Mains
- Voltage Rating: 250VAC
