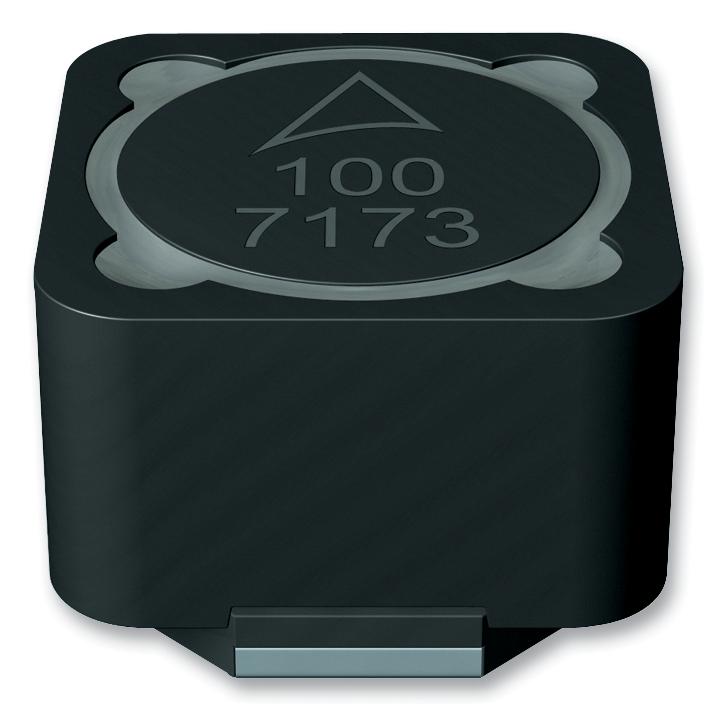

EPCOS - B82464P4103M000 - Wirewound Inductor, 10 µH, 0.03 ohm, 3.4 A, B82464P4
- Inductance: 10µH
- RMS Current (Irms): 3.4A
- Inductor Construction: Wirewound
- Saturation Current (Isat): 3.5A
- Product Range: B82464P4 Series
- Power Inductor Case: 10.4mm x 10.4mm x 4.8mm
- DC Resistance Max: 0.03ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- External Depth: 4.8mm
- External Length / Height: 10.4mm
- External Width: 10.4mm
