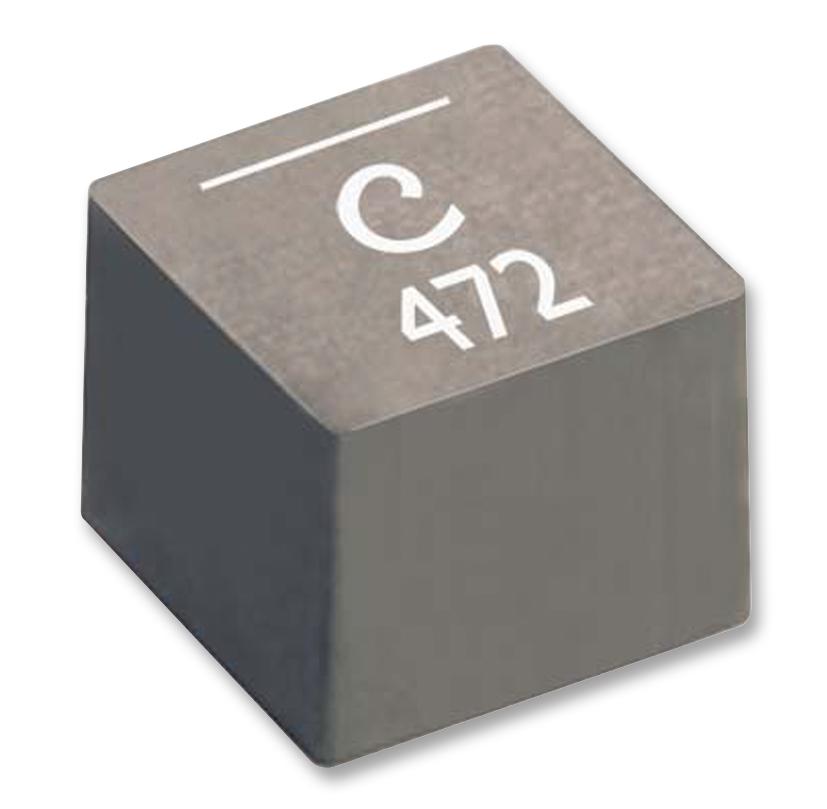

COILCRAFT - XAL1010-822MED - Power Inductor (SMD), 8.2 µH, 17.1 A, Shielded, 18.3 A, XAL1010
- Inductance: 8.2µH
- RMS Current (Irms): 17.1A
- Inductor Construction: Shielded
- Saturation Current (Isat): 18.3A
- Product Range: XAL1010 Series
- Power Inductor Case: 11.3mm x 10mm x 10mm
- DC Resistance Max: 0.0129ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 12MHz
