Omschrijving

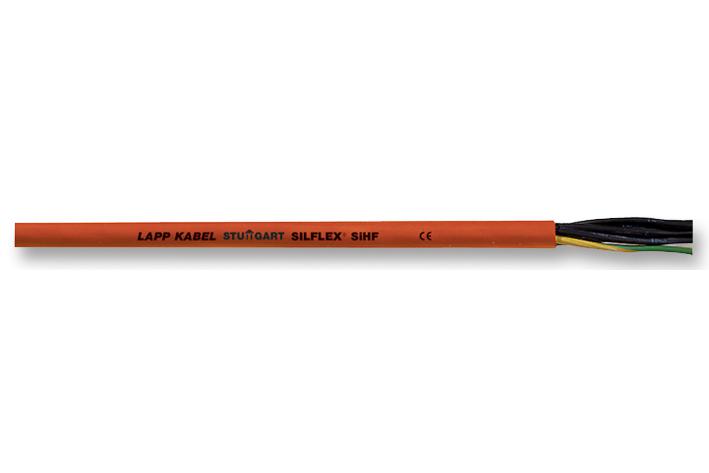

LAPP KABEL - 0046012 - Multicore Cable, Temperature Resistant, Unscreened, 7 Core, 18 AWG, 1 mm², 164 ft, 50 m
- Cable Shielding: Unscreened
- No. of Cores: 7Core
- Wire Gauge: 18AWG
- Conductor Area CSA: 1mm²
- Reel Length (Imperial): 164ft
- Reel Length (Metric): 50m
- Jacket Colour: Red
- No. of Max Strands x Strand Size: 32 x 0.2mm
- Conductor Material: Copper
- Jacket Material: Silicone Rubber
- External Diameter: 9.5mm
- Voltage Rating: 500V
- Product Range: 00460 Series
- SVHC: No SVHC (15-Jan-2019)
- Cable Type: Unshielded
- Conductor Make-up: 32 / 0.2mm
- Current Rating: 15A
- Operating Temperature Max: 180°C
- Operating Temperature Min: -50°C
- Outer Diameter: 9.5mm
- Outside Diameter Max: 9.5mm
- Secondary Insulation Material: Silicone
