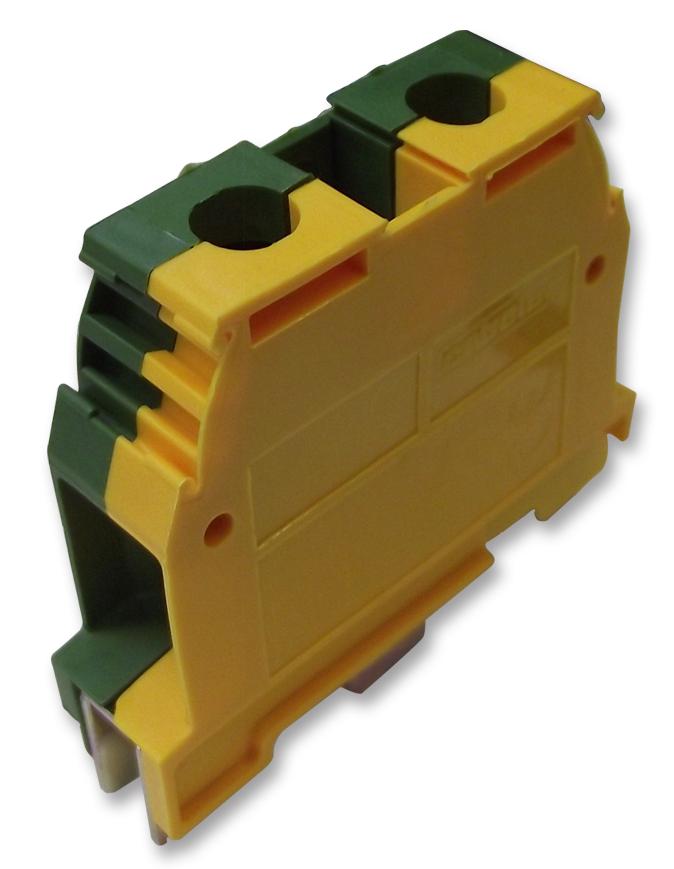

ENTRELEC - TE CONNECTIVITY - 016049626 - DIN Rail Mount Terminal Block, 2 Ways, 18 AWG, 12 AWG, 4 mm², Screw, 30 A
- No. of Positions: 2Ways
- Wire Size AWG Min: 18AWG
- Wire Size AWG Max: 12AWG
- Conductor Area CSA: 4mm²
- Wire Connection Method: Screw
- Rated Current: 30A
- Rated Voltage: 500V
- No. of Levels: 1
- Product Range: -
- Colour: Green / Yellow
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- External Length / Height: 31mm
- External Width: 28mm
- Pitch Spacing: 6mm
- Voltage Rating VAC: 350V
- Wire Area Size Max: 4mm²
- Wire Area Size Min: 0.22mm²
