Omschrijving

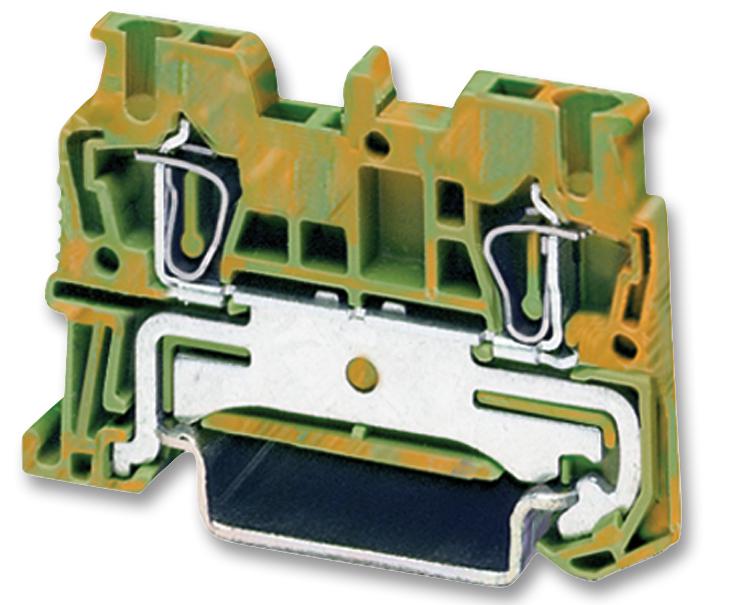

ENTRELEC - TE CONNECTIVITY - 016511417 - DIN Rail Mount Terminal Block, 2 Ways, 22 AWG, 8 AWG, 6 mm², Clamp
- No. of Positions: 2Ways
- Wire Size AWG Min: 22AWG
- Wire Size AWG Max: 8AWG
- Conductor Area CSA: 6mm²
- Wire Connection Method: Clamp
- Rated Current: -
- Rated Voltage: -
- No. of Levels: 1
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, DEMKO, E Exil, Exei, GOST, II, II, NEMKO, SEMKO, SETI, SEV, UL
- Colour: Green / Yellow
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- Contact Material: Steel
- External Length / Height: 53mm
- External Width: 43.5mm
- Height: 53mm
- Pitch Spacing: 8mm
- Wire Area Size Max: 10mm²
- Wire Area Size Min: 0.5mm²
