Omschrijving

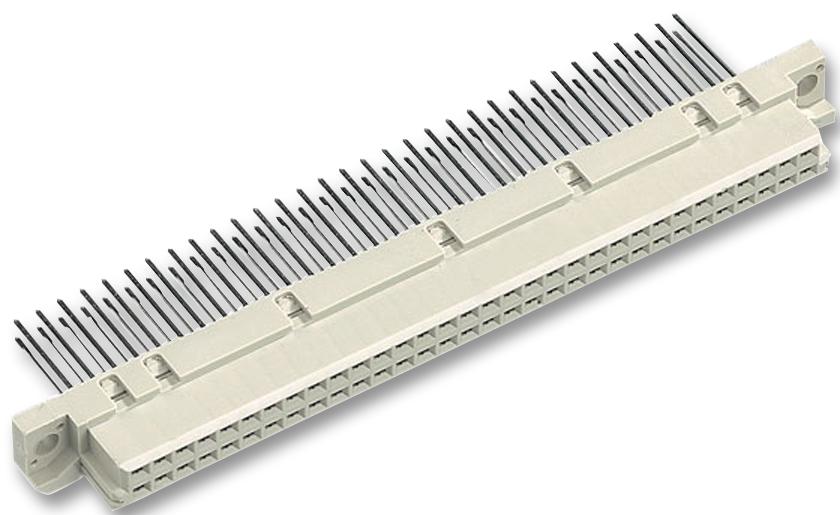

HARTING - 02 02 160 2202 - DIN 41612 Connector, har-bus 64, 160 Contacts, Receptacle, 2.54 mm, 5 Row, z + a + b + c + d
- Product Range: har-bus 64 Series
- No. of Contacts: 160Contacts
- Gender: Receptacle
- Pitch Spacing: 2.54mm
- No. of Rows: 5 Row
- Rows Loaded: z + a + b + c + d
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper
- No. of Mating Cycles: 250
- SVHC: No SVHC (15-Jan-2018)
- Contact Termination: Press Fit Vertical
- Contact Termination Type: Press Fit
- Current Rating: 1A
- Flammability Rating: UL94V-0
- Lead Spacing: 2.54mm
- Material: LCP
- No. of Rows: 5Rows
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Row Pitch: 2.54mm
- Termination Method: Press Fit
