Omschrijving

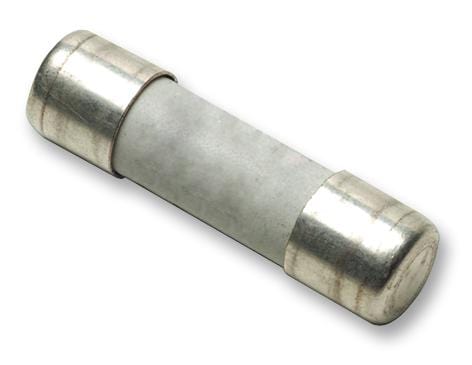

LITTELFUSE - 021602.5MXP - Fuse, Cartridge, Fast Acting, 2.5 A, 250 V, 5mm x 20mm, 0.2" x 0.79", 216
- Blow Characteristic: Fast Acting
- Fuse Current: 2.5A
- Voltage Rating VAC: 250V
- Fuse Size Metric: 5mm x 20mm
- Fuse Size Imperial: 0.2" x 0.79"
- Product Range: 216 Series
- Breaking Capacity Current AC: 1.5kA
- Approval Bodies: BSI, CCC, CE, CSA, K-Mark, METI, SEMKO, VDE
- Approval Category: UL Recognised
- Body Diameter: 5mm
- Breaking Capacity: 1.5kA @ 250V AC
- Cartridge Fuse Material: Ceramic
- Case Material: Ceramic
- External Diameter: 5.2mm
- Fuse Type Blowing Characteristic: Fast Acting
- Length: 20mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
